大华人脸闸机开发
分类: springboot 专栏: 物联网项目 标签: 人脸闸机
2024-07-24 08:25:13 166浏览

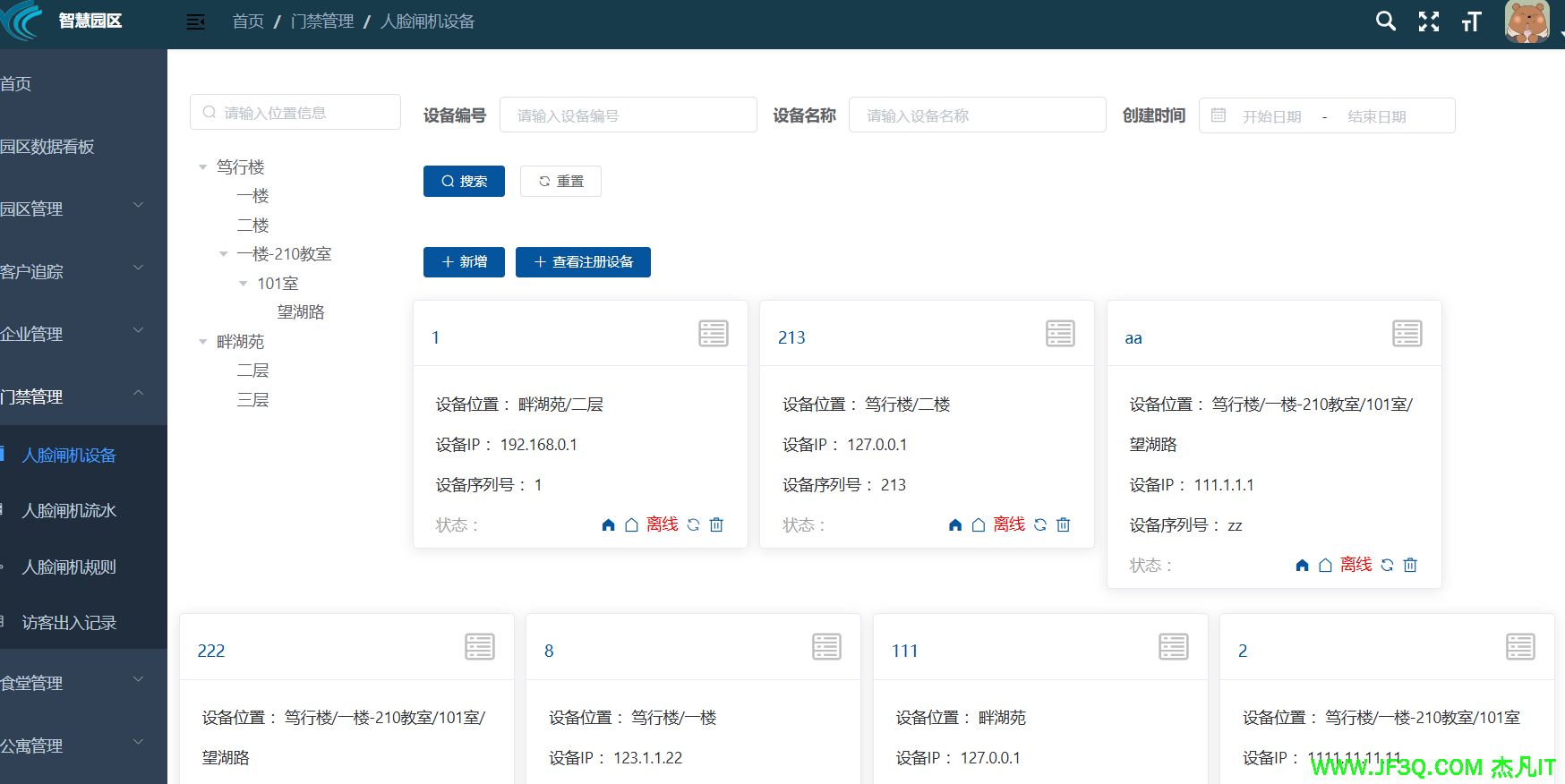

效果图

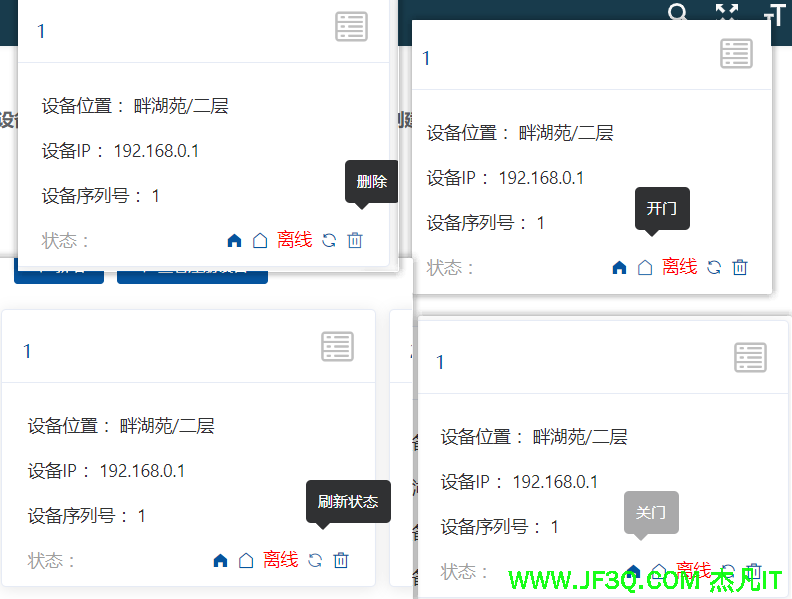

注意这里少了一个订阅按钮和取消订阅的按钮

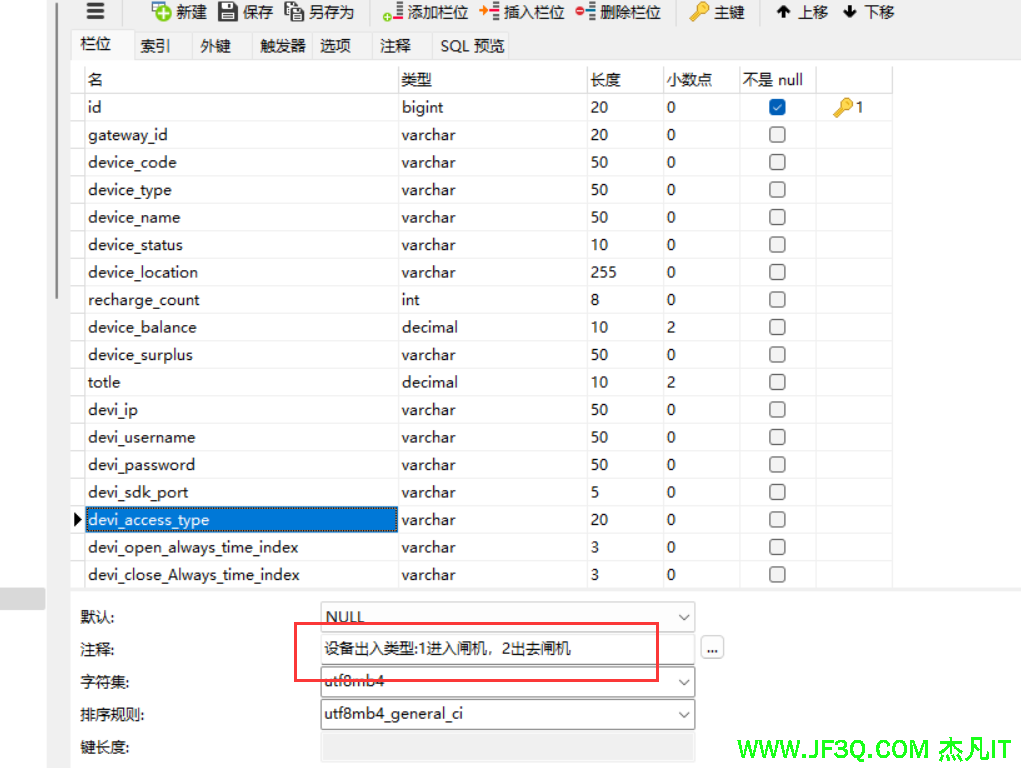

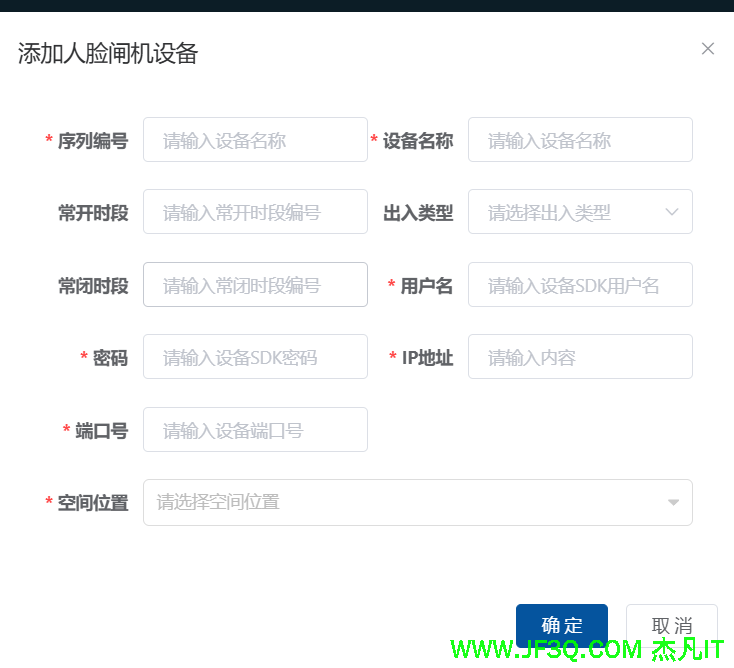

注意新增设备的时候就要把闸机的进出类型选好
主要的功能点
- 人脸闸机设备的增删改查
- 人脸闸机设备刷新状态
- 人脸闸机设备订阅功能
- 人脸闸机设备取消订阅功能
- 同步学生数据到闸机设备(其实教职工的数据也应该同步过去,只不过教职工的话主要是同步到学校大门的闸机设备)
- 出入记录保存并实时更新
- 闸机时间段规则设定
- 闸机开门(暂时不做):人脸识别成功后且在允许进出的时间段就可以开门
- 闸机关门(暂时不做)
设备基本信息
门禁的账号:admin 密码:Admin123456 ,ip:192.168.1.100,端口:37777
准备工作
使用到的技术点:dahuasdk,tcp,jna
JNA:JNA(Java Native Access )提供一组Java工具类用于在运行期间动态访问系统本地库(native library:如Window的dll)而不需要编写任何Native/JNI代码。开发人员只要在一个java接口中描述目标native library的函数与结构,JNA将自动实现Java接口到native function的映射。

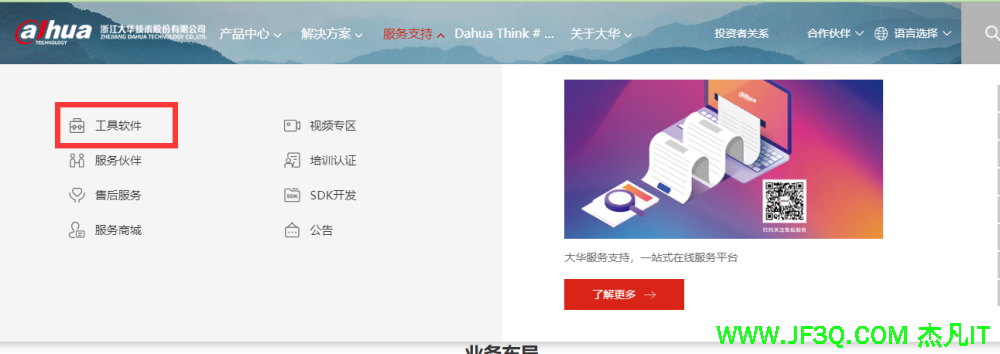

1.大华官网:https://www.dahuatech.com/
下载sdk
2. 下载后将包解压,并导入到IDEA

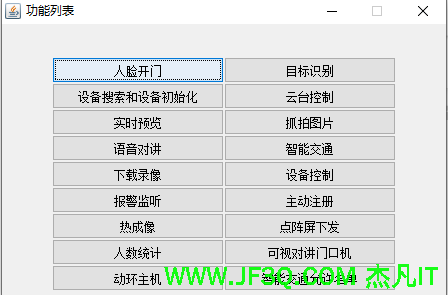

3. 运行导入待IDEA中的程序,找到mian.java去运行,运行成功后会出现选择界面
4. 订阅:使用sdk的订阅功能,订阅成功后,用户只要一刷脸回调函数就能够收到刷脸用户的信息(保存到数据库,照片需要上传到oss服务)

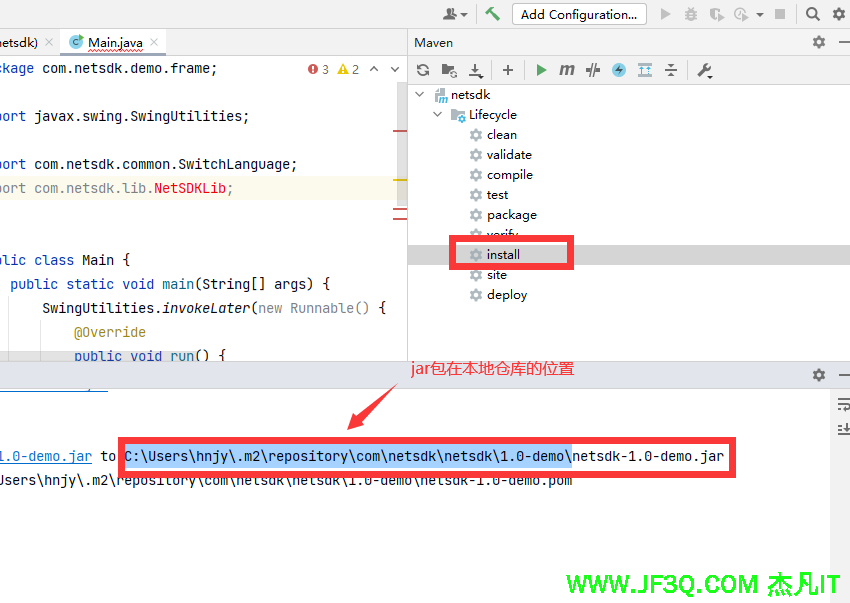

5. sdk打包上传
AccessNew.java
6. sdk的使用
<dependency>
<groupId>com.netsdk</groupId>
<artifactId>netsdk</artifactId>
<version>1.0-demo</version>
</dependency>
7. 搜索源码中各个功能的实现方式

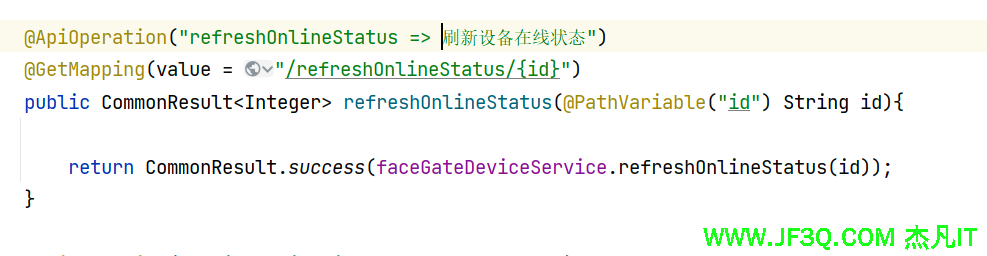

刷新设备
其实核心就是登录设备。
使用dahuasdk调用安全登录接口连接门禁设备,设备连接成功后会返回登录句柄,句柄值如果大于0则表示登录成功(设备在线),小于等于0则表示登录失败(设备离线);
public Integer refreshOnlineStatus(String id) {
LoginModule login = DeviceUtils.login(id);
LambdaQueryWrapper<IotDeviceVO> queryWrapper = new LambdaQueryWrapper<>();
queryWrapper.eq(IotDeviceVO::getId, id);
IotDeviceVO vo = new IotDeviceVO();
vo.setId(Long.valueOf(id));
if(login.m_hLoginHandle.longValue() == 0){
vo.setOnlineStatus("0");
}else{
vo.setOnlineStatus("1");
DeviceUtils.logout(login);
}
return this.baseMapper.updateById(vo);
}
public static synchronized LoginModule loginByDevice(IotDeviceVO iotDeviceVO) {
LoginModule loginModule = LOGIN_MAP.get(String.valueOf(iotDeviceVO.getId()));
if (Objects.nonNull(loginModule)) {
return loginModule;
}
//根据设备ID查询
loginModule = new LoginModule();
IotDeviceDao iotDeviceDao = (IotDeviceDao)SpringUtils.getBean("iotDeviceDao");
IotDeviceVO iotDeviceVO1 = iotDeviceDao.selectById(iotDeviceVO.getId());
// 登录设备
loginModule.login(iotDeviceVO1.getDeviIp(), Integer.parseInt(iotDeviceVO1.getDeviSdkPort()), iotDeviceVO1.getDeviUsername(), iotDeviceVO1.getDeviPassword());
loginModule.deviceKey = iotDeviceVO1.getId() + "_" + Long.toString(Calendar.getInstance().getTime().getTime());
LOGIN_MAP.put(String.valueOf(iotDeviceVO1.getId()), loginModule);
return loginModule;
}
开启智能订阅
订阅成功后每次刷脸后,刷脸的数据可以实时的同步到系统中,获取到照片后将照片保存到对象存储服务上。
订阅设备的时候也是使用sdk的订阅方法,需要实现NetSDKLib.fAnalyzerDataCallBack接口并重写其中的invoke方法和finalize方法,只要学生使用门禁机刷了脸就会去回调invoke方法,并获取到刷脸学生的信息;实现订阅回调接口要注意实现的类必须时静态类(static),为了防止该实现类被回收掉;
登录句柄最好进行缓存,因为每次在退出登录的时候可能会将之前登录的连接一并断开
//其他代码省略
AnalyzerDataCB.getInstance().setDeviceVO(deviceInfo);//为了回调的时候能拿到设备信息,后面会讲为什么
//订阅
RealLoadPicture(0, 1, AnalyzerDataCB.getInstance());
注意:订阅后,invoke回调中无法获取设备信息的问题,所以采用new 对象的形式处理,但为了防止jvm回收掉的问题,我们可以把那个AnalyzerDataCB写成静态内部类的形式(并且是单例模式的,只是加一个设备可变属性),这样就巧妙地解决了这个问题.单例性能又好,完美。
/**
* 写成静态主要是防止被回收
*/
private static class AnalyzerDataCB implements NetSDKLib.fAnalyzerDataCallBack {
private IotDeviceVO deviceVO;//设备
//set设置设备
public void setDeviceVO(IotDeviceVO deviceVO) {
this.deviceVO = deviceVO;
}
//用来保存数据的service (非ioc容器里的类用容器里的bean类)
private static final IotDeviceService service= SpringUtils.getBean(IotDeviceService.class);
private AnalyzerDataCB() {
}
private static class AnalyzerDataCBHolder {
private static final TestHandle.AnalyzerDataCB instance = new TestHandle.AnalyzerDataCB();
}
public static TestHandle.AnalyzerDataCB getInstance() {
return TestHandle.AnalyzerDataCB.AnalyzerDataCBHolder.instance;
}
public int invoke(
NetSDKLib.LLong lAnalyzerHandle,
int dwAlarmType,
Pointer pAlarmInfo,
Pointer pBuffer,
int dwBufSize,
Pointer dwUser,
int nSequence,
Pointer reserved) {
//代码省略
//可以写出入记录的代码,拿到卡信息的才是
}
这里的invoke就是回调
取消订阅
//取消订阅,防止重复订阅
AttendanceModule.stopRealLoadPicture();
同步数据
这里只要求做学生信息同步到设备

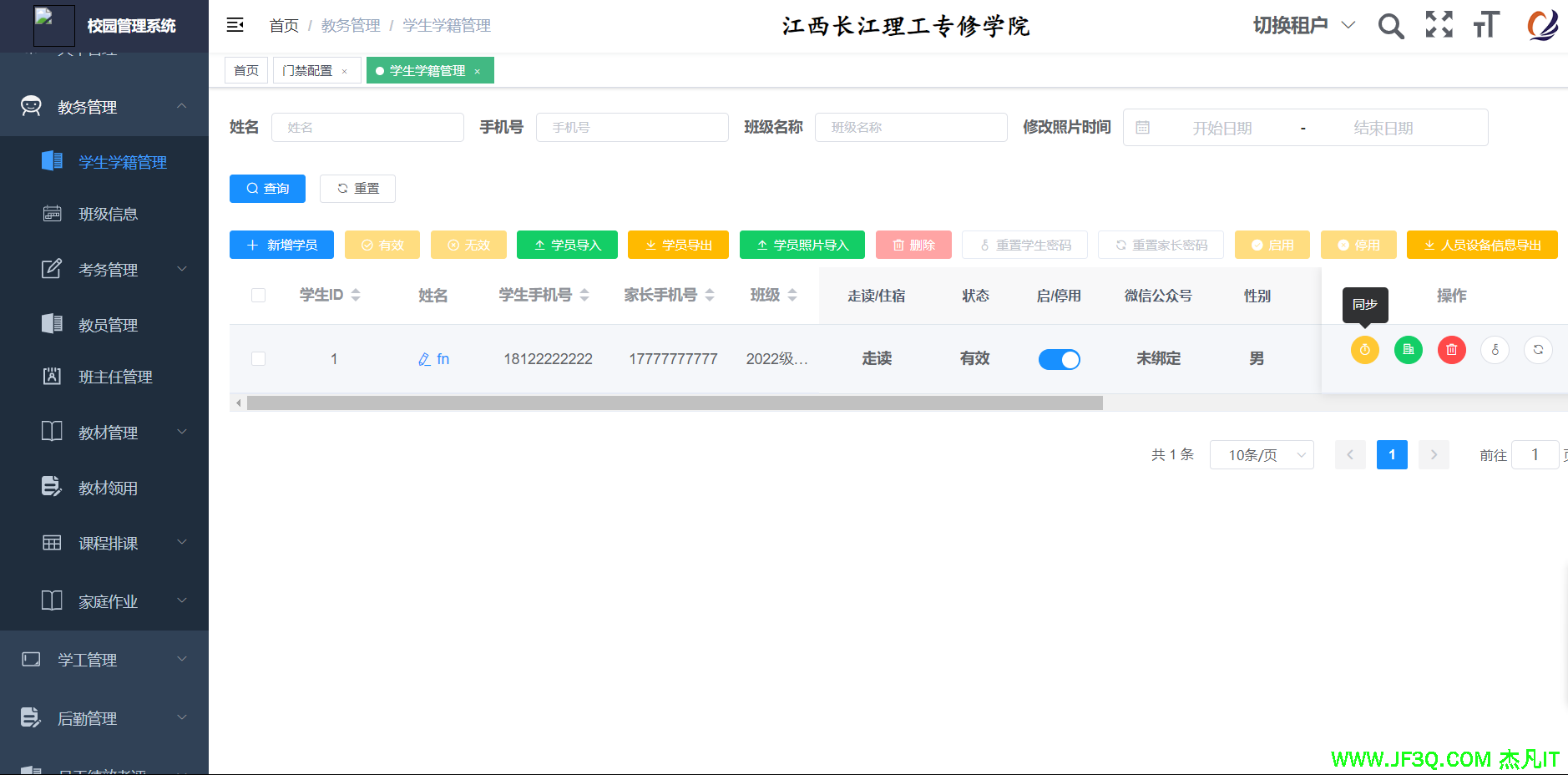

- 在“学生学籍管理”列表后面添加一个同步按钮,点击同步将学生信息添加到门禁机上,并修改同步状态(添加是否同步字段);同步时需要判断学生是在哪个宿舍,宿舍在哪个楼栋,再查询到楼栋所在的门禁设备,登录后进行添加卡的操作;学生信息添加到门禁之后,还需要添加学生照片,两步都成功则表示成功;
- 学生删除后也要同步删除门禁的信息也要删除
- 修改照片:上传照片--》将照片进行压缩———》登录门禁修改照片;对已经同步到门禁的学生才能修改照片并同步,没有同步到门禁的学生只做修改

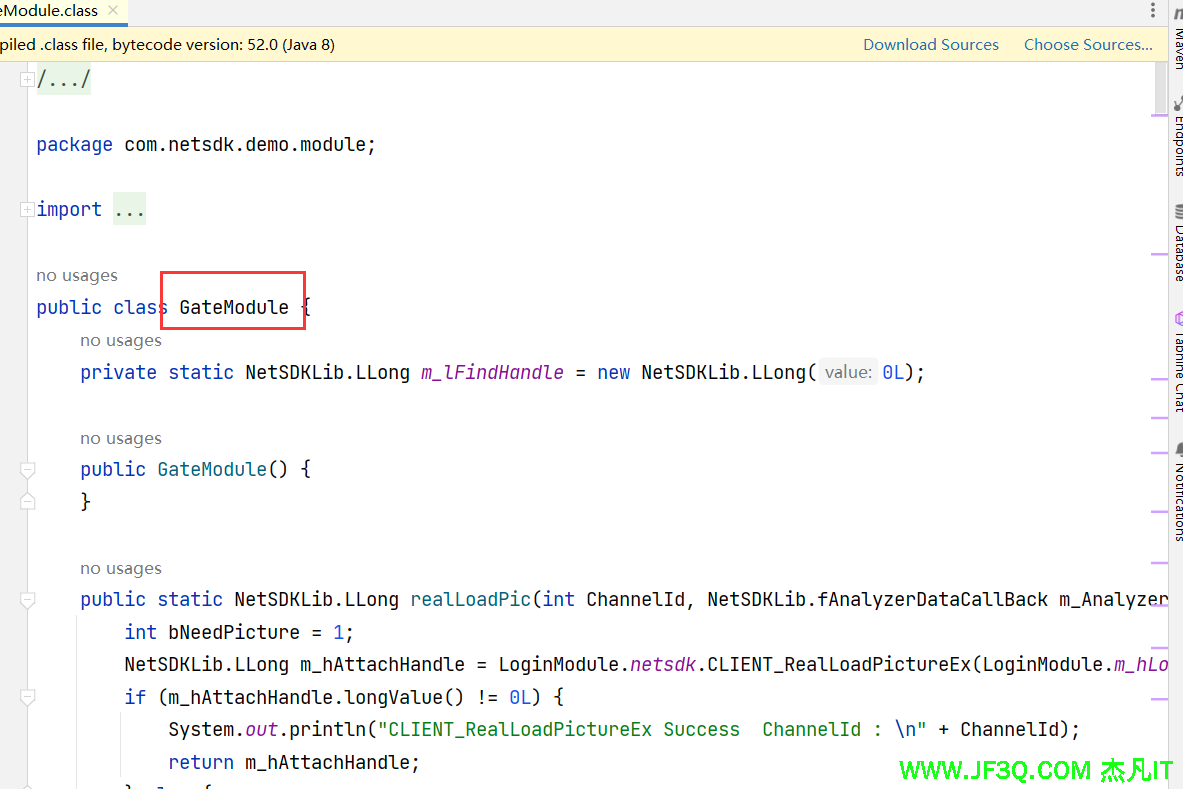

提示:AddCardDialog GateModule 可以参考sdk的这两个类
照片上传使用了spring的MultipartFile对象获取文件,照片获取到了之后使用Thumbnails对照片进行压缩因为更新到门禁设备的照片要小于100kb,压缩后通过门禁用户的id将照片更新到指定的设备中

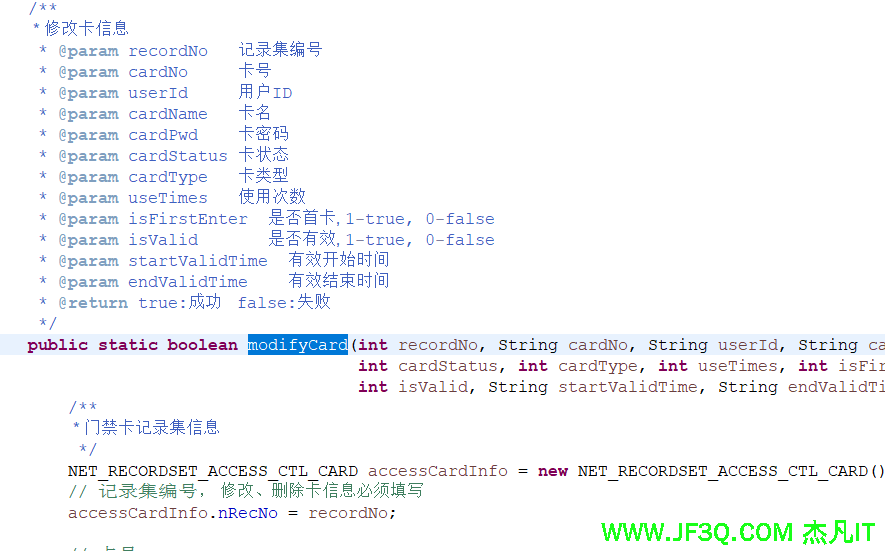

修改卡信息

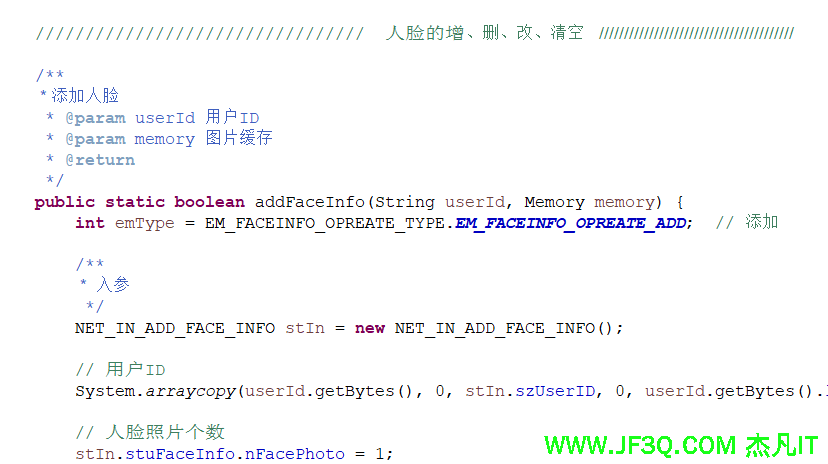

新增人脸

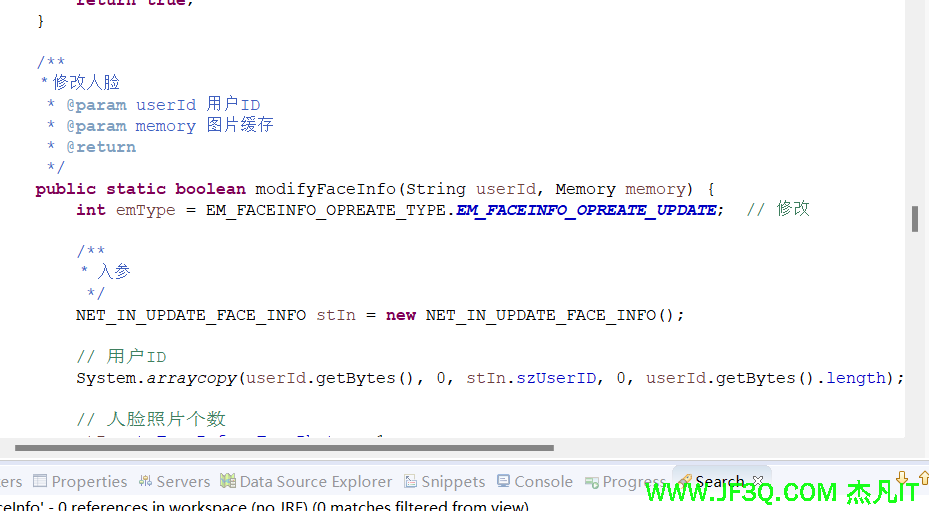

修改人脸

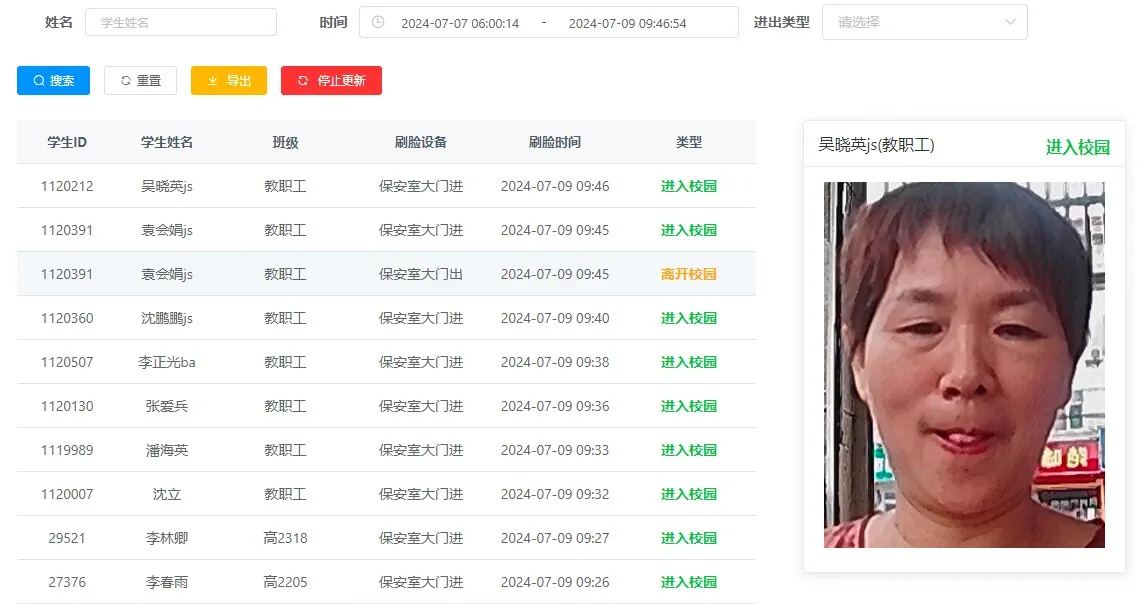

出入记录
需要从订阅的回调中获取到出入人员的信息,可以通过卡号或用户编号去系统中搜索是哪个学生,出入时间,出入时门禁所拍摄的学生的照片(字节),字节转成文件进行保存(保存到本地),保存后会有文件路径;将这些信息全都保存到出入记录表中;前端可以采用轮询去后台获取数据;也可以采用SSE去获取;(每隔5分钟去访问一体机,增量获取近5分钟的出入记录,并将记录保存到流水表中并将一体机上的照片保存到服务器的某个目录)
效果图如下

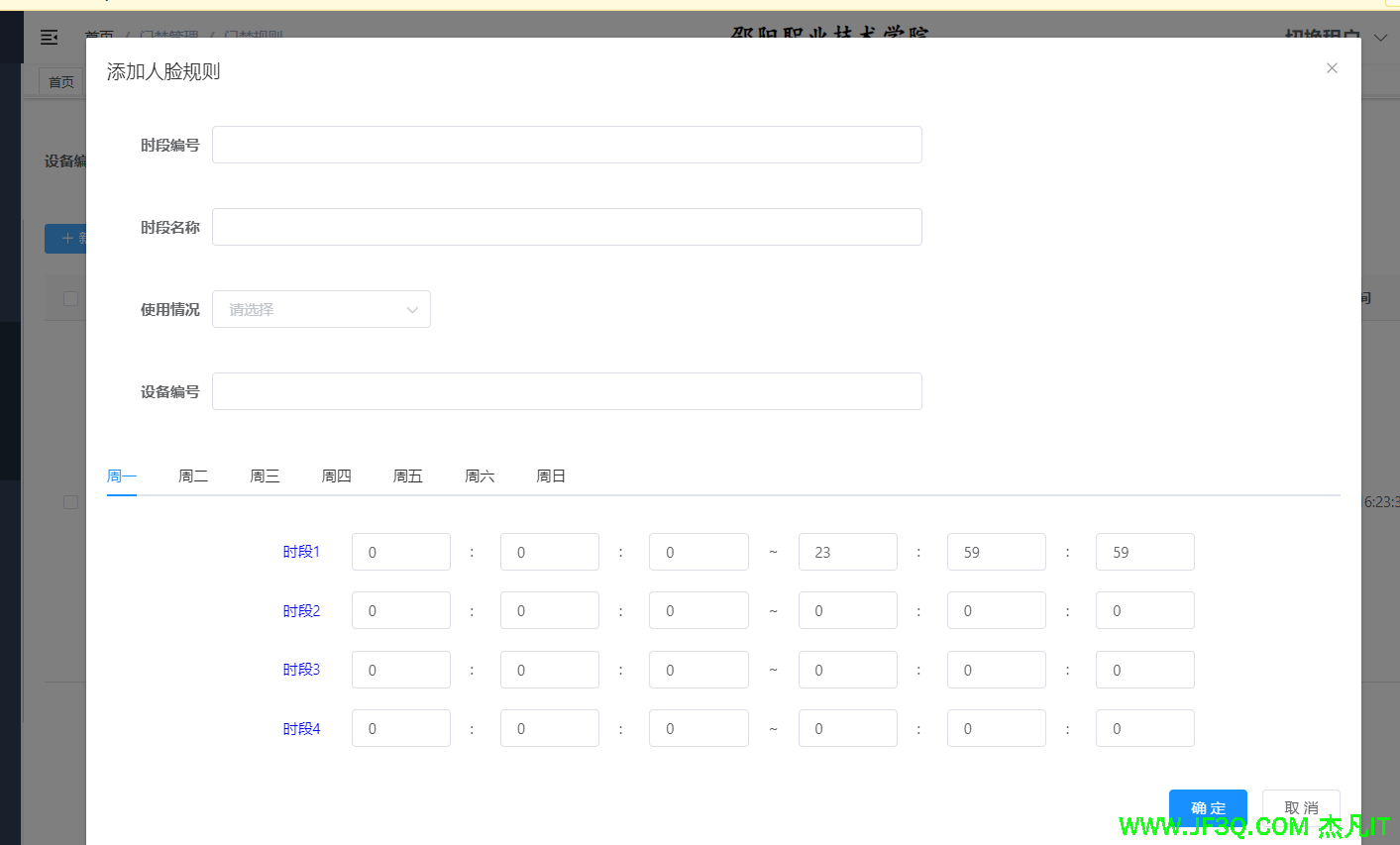

门禁时间段规则设置
备注:只要把时间段规则设置进去到设备中就可以了,设备会自己判断当前时间是不是在设定的时间规则里,在的话就刷脸成功放行,不在的话就刷脸失败拦截。(咱们不需要写多余的代码去判断规则,不过学生的卡信息里面的时间段规则编号要同步关联下,这样就生效了,具体操作后面会提到)

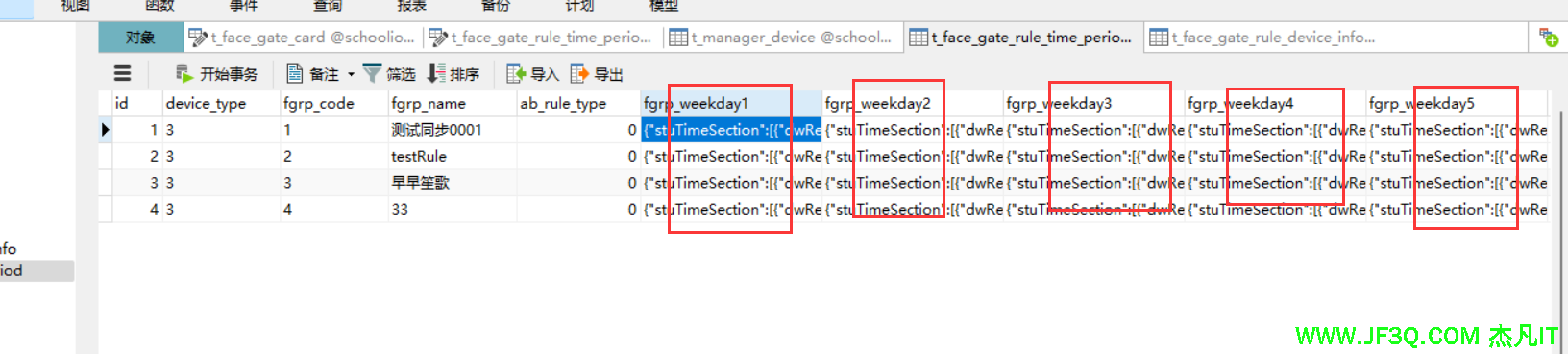

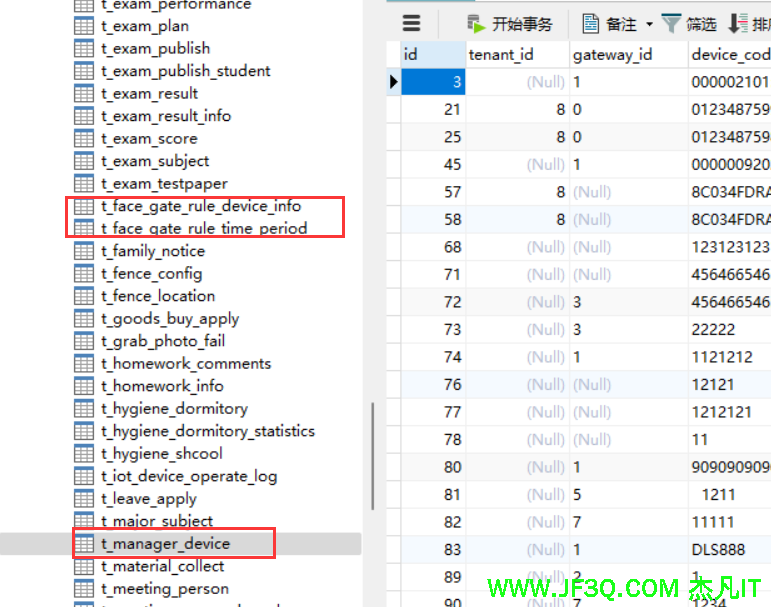

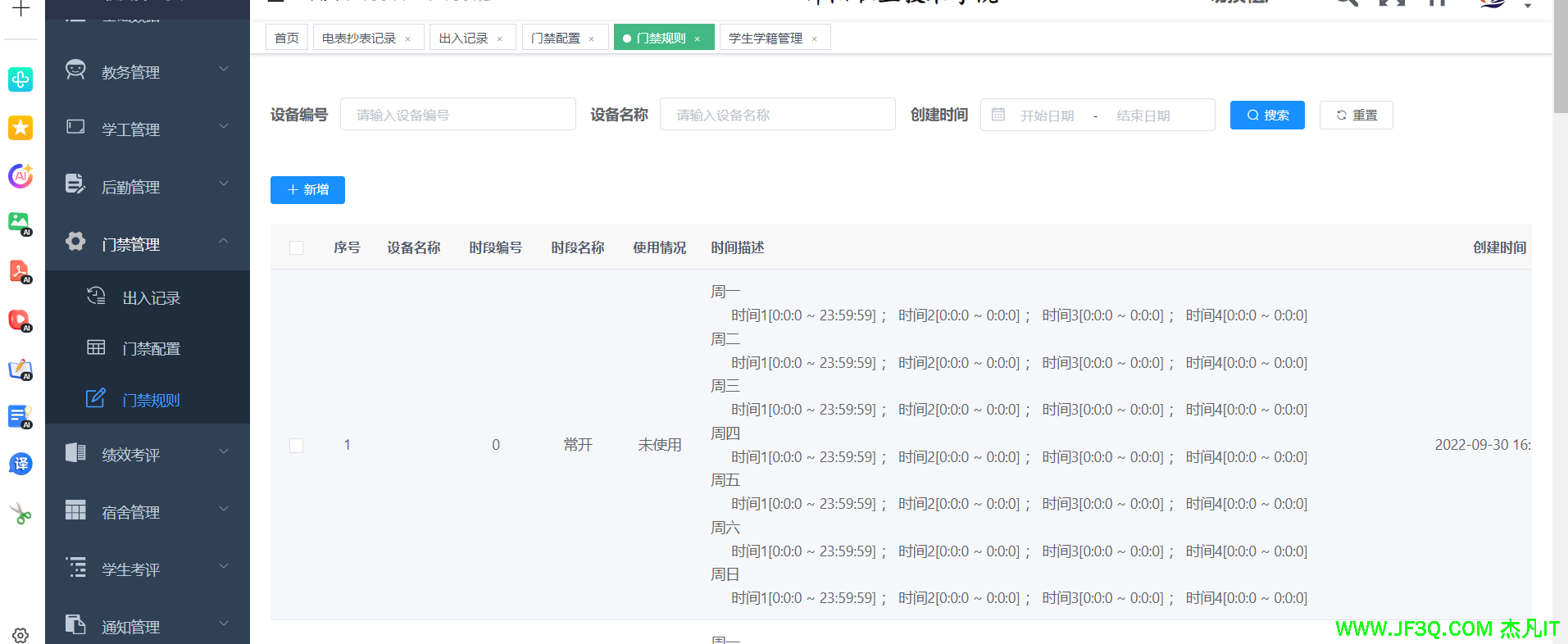

主要操作的表
新增或修改规则

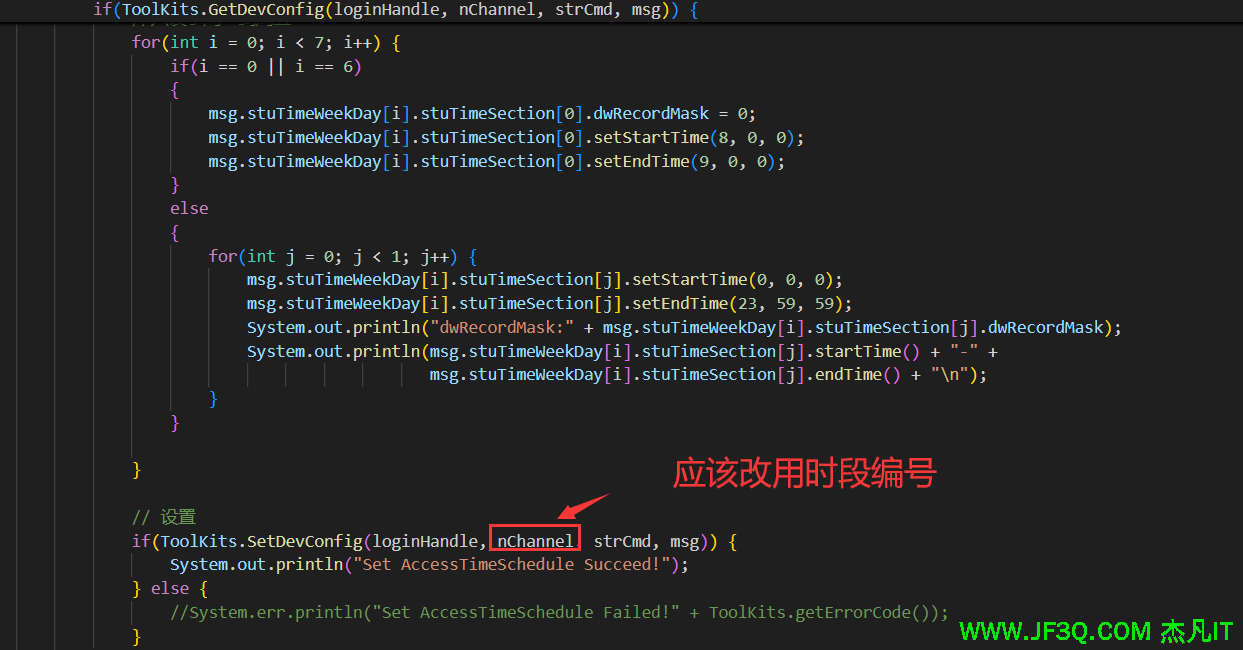

如果你多次调用,只要你的这个时段编号还是旧的话,那他就是修改,如果你的时段编号在设备上没有的话就是新增(也就是说新增和修改都是共用的这个方法)

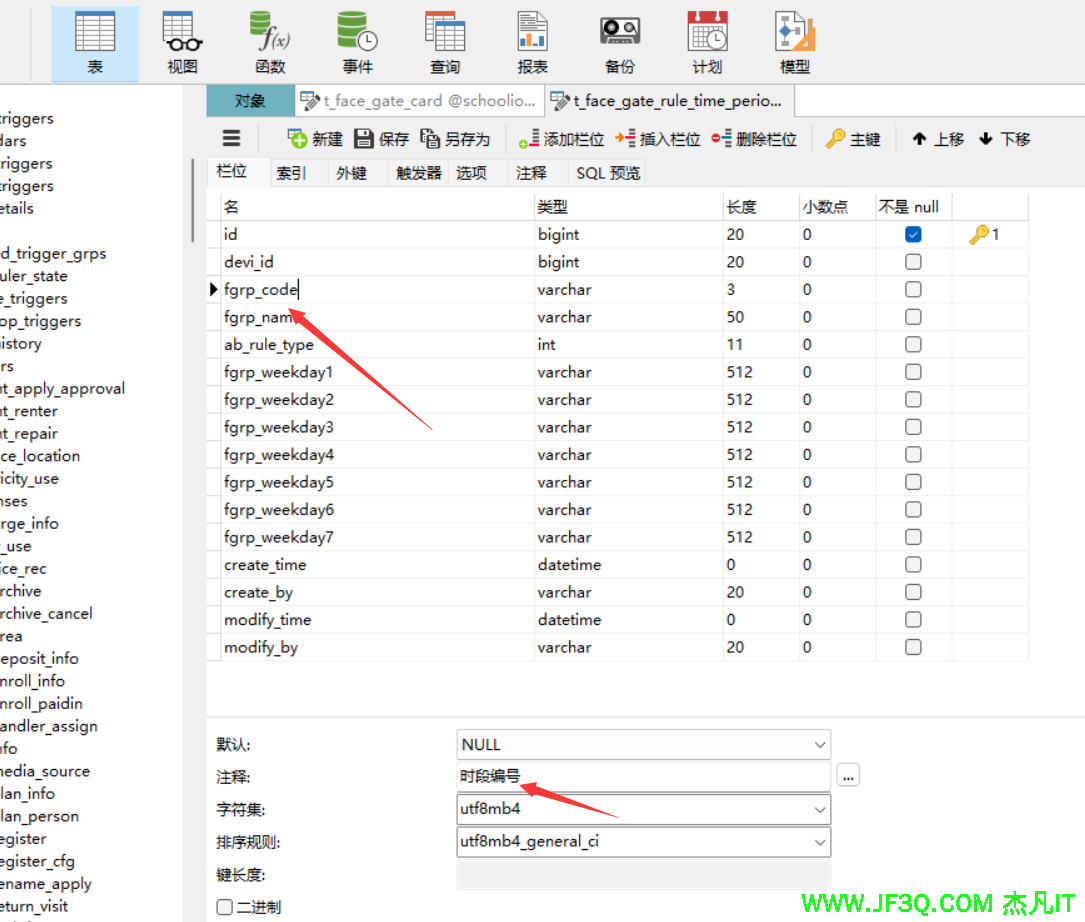

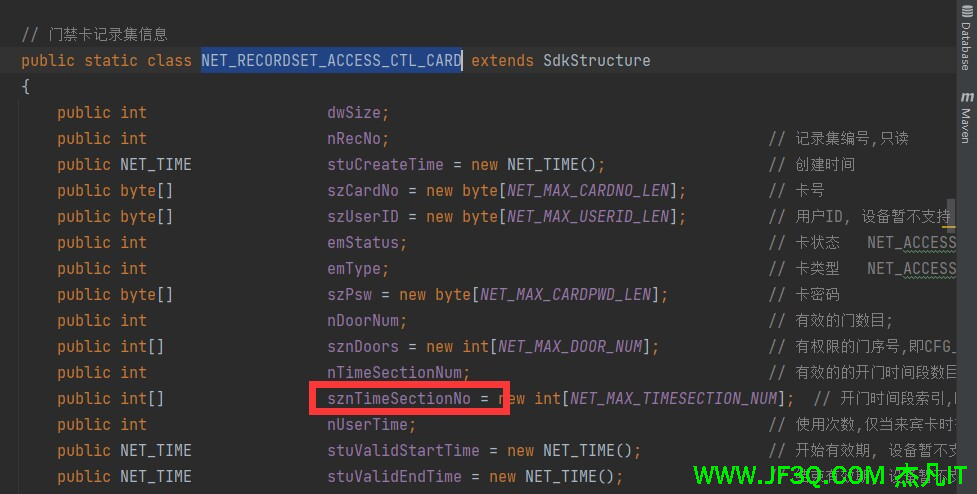

也就是数据库表中的这个字段,这个时段编号取值范围是0-255

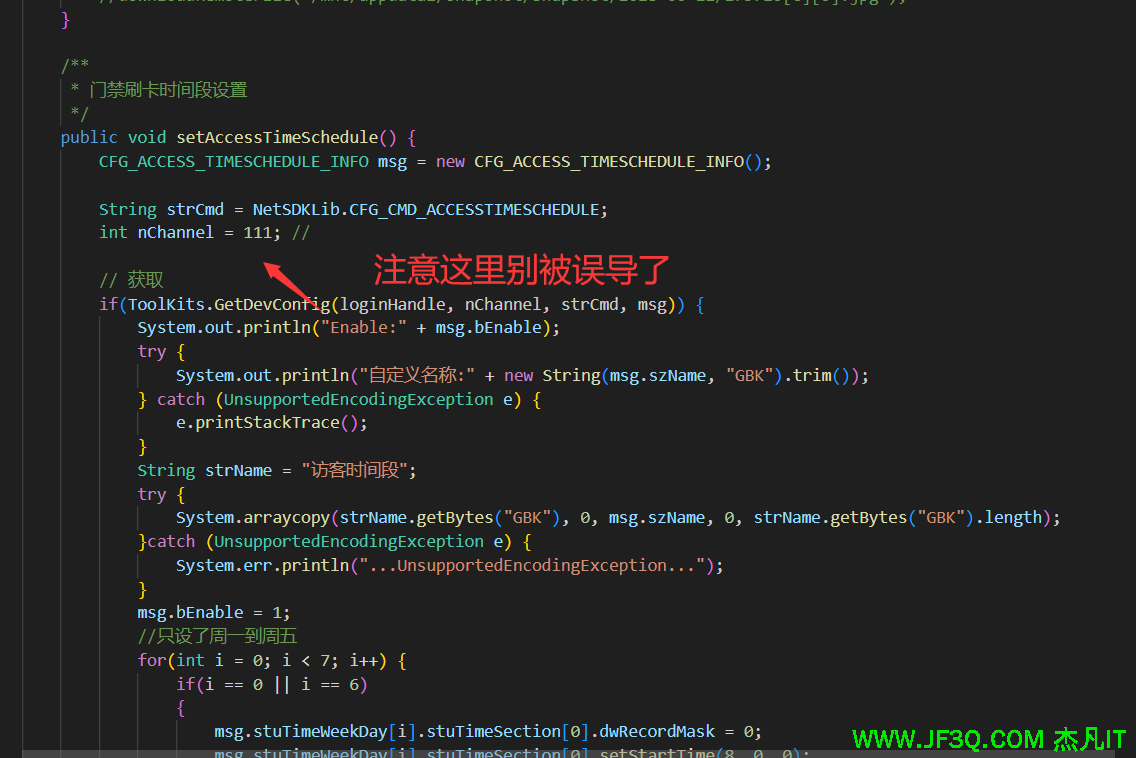

参考代码如下
public static boolean updateDeviceTimeRolues(FaceGateRuleTimePeriodReceiveVo receiveVo) {
LoginModule loginModule = DeviceUtils.login(receiveVo.getDeviId().toString());
boolean login = loginModule.m_hLoginHandle.longValue() == 0? false:true;
NetSDKLib.CFG_ACCESS_TIMESCHEDULE_INFO timescheduleInfo = new NetSDKLib.CFG_ACCESS_TIMESCHEDULE_INFO();
int fgrpCodeInt = Integer.parseInt(receiveVo.getFgrpCode());
boolean result = ToolKits.GetDevConfig(loginModule.m_hLoginHandle, fgrpCodeInt, LoginModule.netsdk.CFG_CMD_ACCESSTIMESCHEDULE, timescheduleInfo);
if (!result) {
return false;
}
byte[] fgrpNameByte = new byte[NetSDKLib.CFG_COMMON_STRING_128];
try {
fgrpNameByte = receiveVo.getFgrpName().getBytes("GBK");
} catch (UnsupportedEncodingException e) {
e.printStackTrace();
}
System.arraycopy(fgrpNameByte, 0, timescheduleInfo.szName, 0, fgrpNameByte.length);
timescheduleInfo.bEnable = 1;

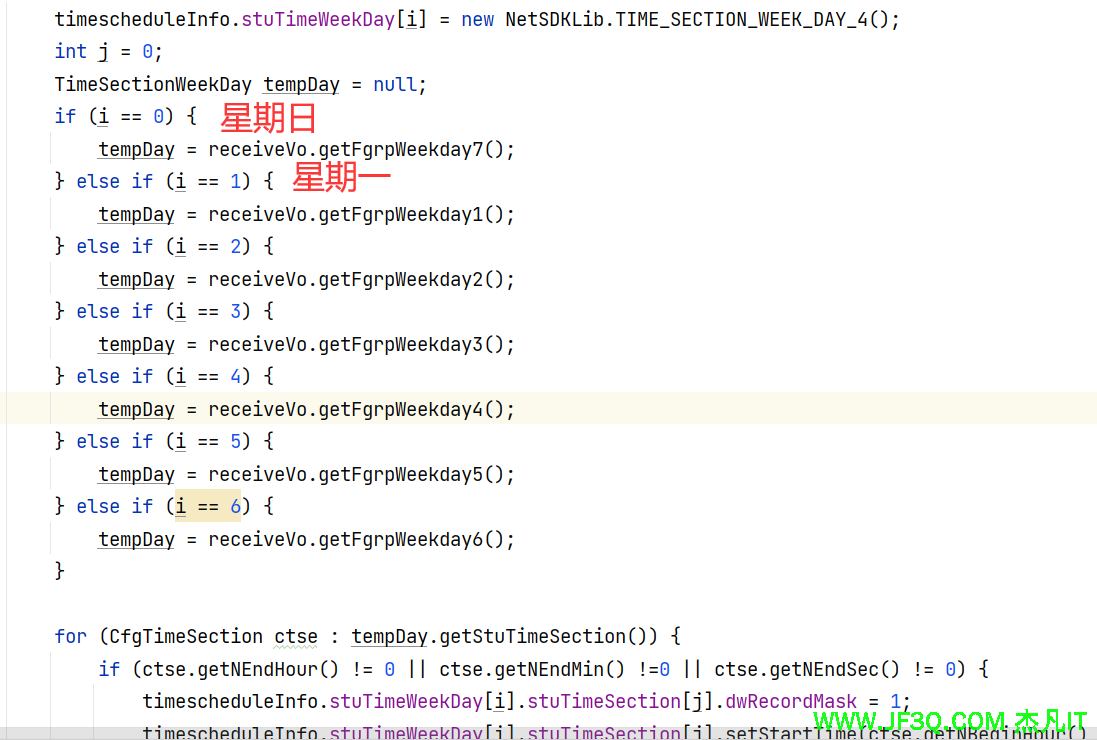

// day1
for (int i = 0; i < 7; i++) {
timescheduleInfo.stuTimeWeekDay[i] = new NetSDKLib.TIME_SECTION_WEEK_DAY_4();
int j = 0;
TimeSectionWeekDay tempDay = null;
if (i == 0) {
tempDay = receiveVo.getFgrpWeekday7();
} else if (i == 1) {
tempDay = receiveVo.getFgrpWeekday1();
} else if (i == 2) {
tempDay = receiveVo.getFgrpWeekday2();
} else if (i == 3) {
tempDay = receiveVo.getFgrpWeekday3();
} else if (i == 4) {
tempDay = receiveVo.getFgrpWeekday4();
} else if (i == 5) {
tempDay = receiveVo.getFgrpWeekday5();
} else if (i == 6) {
tempDay = receiveVo.getFgrpWeekday6();
}
for (CfgTimeSection ctse : tempDay.getStuTimeSection()) {
if (ctse.getNEndHour() != 0 || ctse.getNEndMin() !=0 || ctse.getNEndSec() != 0) {
timescheduleInfo.stuTimeWeekDay[i].stuTimeSection[j].dwRecordMask = 1;
timescheduleInfo.stuTimeWeekDay[i].stuTimeSection[j].setStartTime(ctse.getNBeginHour(), ctse.getNBeginMin(), ctse.nEndSec);
timescheduleInfo.stuTimeWeekDay[i].stuTimeSection[j].setEndTime(ctse.getNEndHour(), ctse.getNEndMin(), ctse.nEndSec);
}
j++;
}
}
result = ToolKits.SetDevConfig(loginModule.m_hLoginHandle, Integer.parseInt(receiveVo.getFgrpCode()), NetSDKLib.CFG_CMD_ACCESSTIMESCHEDULE, timescheduleInfo);
DeviceUtils.logout(receiveVo.getDeviId().toString(), loginModule);
return result;
}
删除规则
public static boolean deleteDeviceTimeRule(String deviId, String fgrpCode) {
LoginModule loginModule = DeviceUtils.login(deviId);
boolean login = loginModule.m_hLoginHandle.longValue() == 0? false:true;
NetSDKLib.CFG_ACCESS_TIMESCHEDULE_INFO timescheduleInfo = new NetSDKLib.CFG_ACCESS_TIMESCHEDULE_INFO();
timescheduleInfo.bEnable = 0;
int fgrpCodeInt = Integer.parseInt(fgrpCode);
boolean result = ToolKits.SetDevConfig(loginModule.m_hLoginHandle, fgrpCodeInt, NetSDKLib.CFG_CMD_ACCESSTIMESCHEDULE, timescheduleInfo);
DeviceUtils.logout(deviId, loginModule);
return result ;
}
查询规则
这个的话要有定时任务,不断把设备中的规则同步到数据库中才对。而不是单纯查数据库中的规则。还是得调用大华sdk才对。
public static List<CfgAccessTimeScheduleInfo> findDeviceTimeRolues(LoginModule loginModule) throws UnsupportedEncodingException {
List<NetSDKLib.CFG_ACCESS_TIMESCHEDULE_INFO> memeryTimeSchedulelist = new ArrayList<>();
int indexSize = 128;
for (int i = 0; i < indexSize; i++) {
NetSDKLib.CFG_ACCESS_TIMESCHEDULE_INFO timescheduleInfo = new NetSDKLib.CFG_ACCESS_TIMESCHEDULE_INFO();
boolean result = ToolKits.GetDevConfig(loginModule.m_hLoginHandle, i, LoginModule.netsdk.CFG_CMD_ACCESSTIMESCHEDULE, timescheduleInfo);
if (result && timescheduleInfo.bEnable == 1) {
memeryTimeSchedulelist.add(timescheduleInfo);
}
}
List<CfgAccessTimeScheduleInfo> cfgAccessTimeScheduleInfoList = new ArrayList<>();
if (memeryTimeSchedulelist.size() != 0) {
CfgAccessTimeScheduleInfo cfgAccessTimeScheduleInfo = null;
int times = 0;
for (NetSDKLib.CFG_ACCESS_TIMESCHEDULE_INFO timescheduleInfo : memeryTimeSchedulelist) {
cfgAccessTimeScheduleInfo = new CfgAccessTimeScheduleInfo();
cfgAccessTimeScheduleInfo.setName(new String(timescheduleInfo.szName, "GBK").trim());
cfgAccessTimeScheduleInfo.setCode("" + times++);
for (int i = 0, daySize = timescheduleInfo.stuTimeWeekDay.length; i < daySize; i++) {
TimeSectionWeekDay timeSectionWeekDay = new TimeSectionWeekDay();
for (int j = 0, sectionSize = timescheduleInfo.stuTimeWeekDay[i].stuTimeSection.length; j < sectionSize; j++) {
CfgTimeSection timeSection = new CfgTimeSection();
timeSection.setNBeginHour(timescheduleInfo.stuTimeWeekDay[i].stuTimeSection[j].nBeginHour);
timeSection.setNBeginMin(timescheduleInfo.stuTimeWeekDay[i].stuTimeSection[j].nBeginMin);
timeSection.setNBeginSec(timescheduleInfo.stuTimeWeekDay[i].stuTimeSection[j].nBeginSec);
timeSection.setNEndHour(timescheduleInfo.stuTimeWeekDay[i].stuTimeSection[j].nEndHour);
timeSection.setNEndMin(timescheduleInfo.stuTimeWeekDay[i].stuTimeSection[j].nEndMin);
timeSection.setNEndSec(timescheduleInfo.stuTimeWeekDay[i].stuTimeSection[j].nEndSec);
timeSectionWeekDay.getStuTimeSection().add(timeSection);
}
cfgAccessTimeScheduleInfo.getStuTimeWeekDayList().add(timeSectionWeekDay);
}
cfgAccessTimeScheduleInfoList.add(cfgAccessTimeScheduleInfo);
}
}
return cfgAccessTimeScheduleInfoList;
}

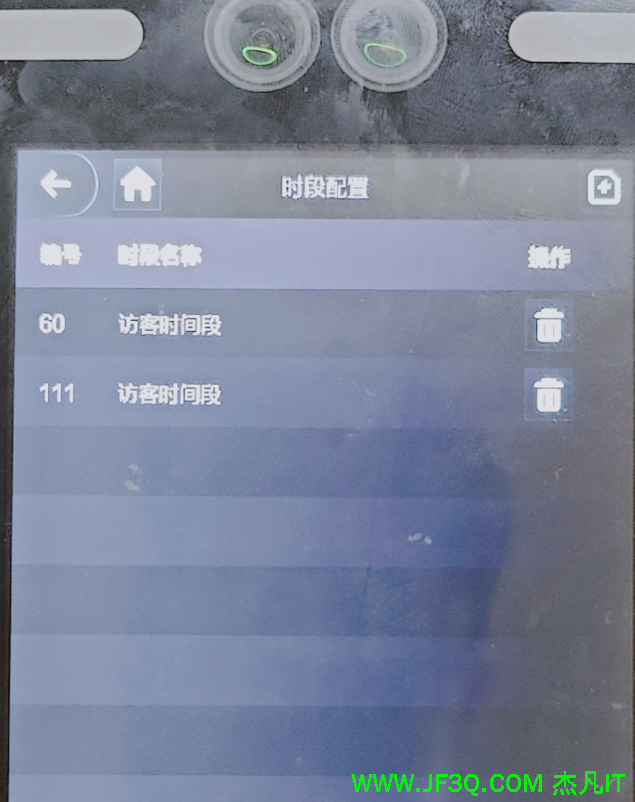

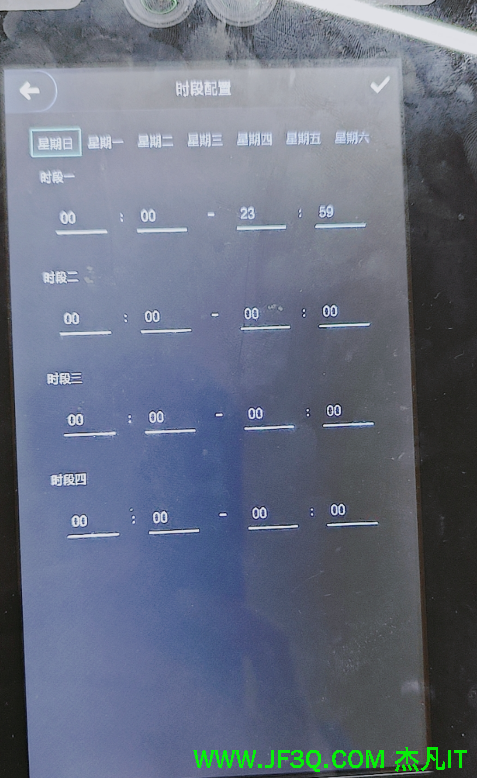

设备上直接查看的效果,一个设备可以添加多个时间段规则
校验时间段规则

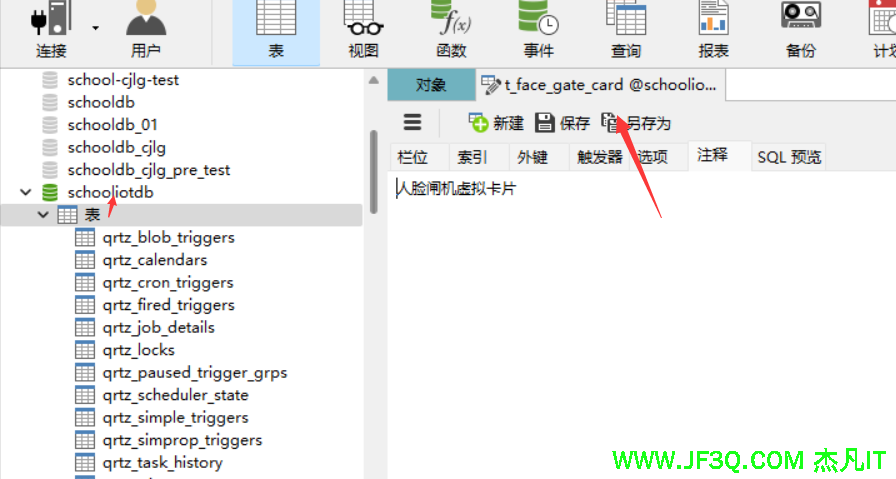

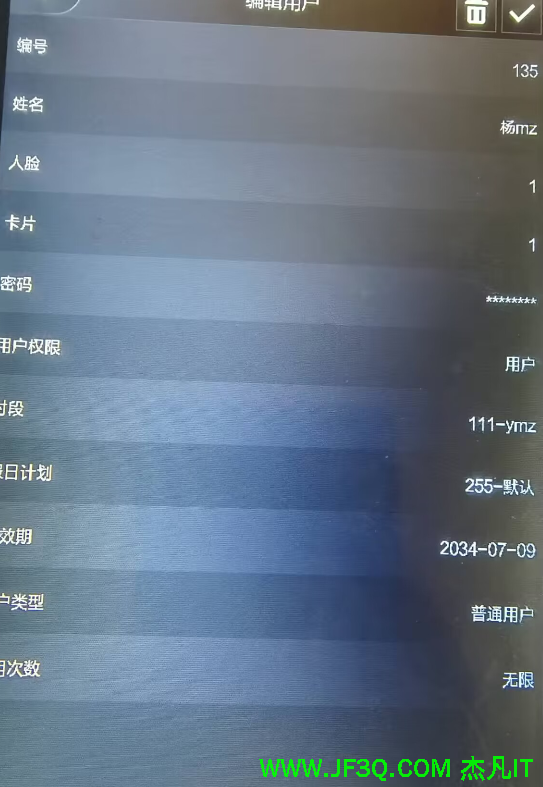

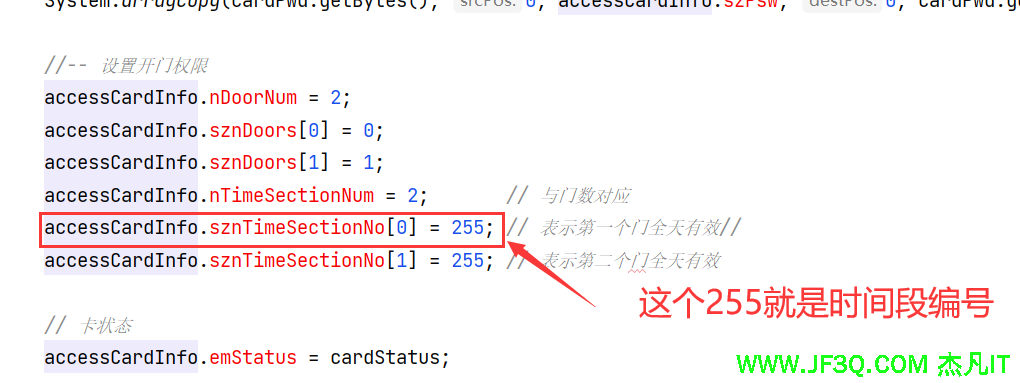

门禁卡信息添加的时候,学生这里设置一下他的卡信息里面的时间段规则编号,这样就关联起来了。该学生如果不是在这个时间段进出的话就进不来!提示时间段错误。

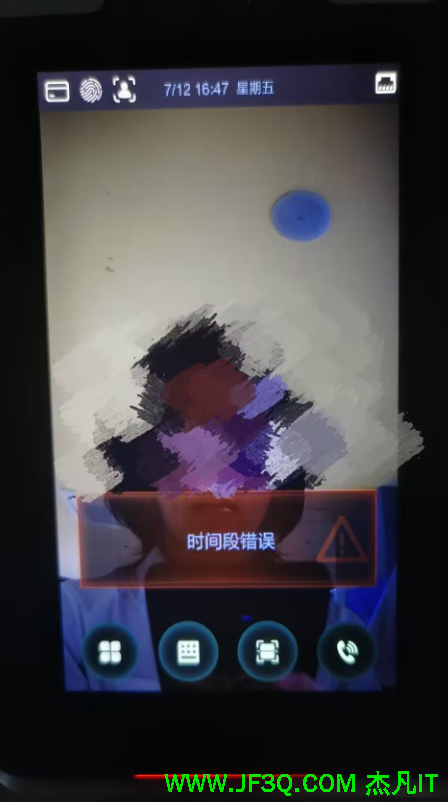

测试效果如下
门禁操作工具类
package com.netsdk.demo.accessControl;
import com.netsdk.demo.customize.PrintStruct;
import com.netsdk.demo.util.Base64Util;
import com.netsdk.demo.util.CaseMenu;
import com.netsdk.lib.NativeString;
import com.netsdk.lib.NetSDKLib;
import com.netsdk.lib.NetSDKLib.*;
//import com.netsdk.lib.NET_EM_CFG_OPERATE_TYPE;
import com.netsdk.lib.ToolKits;
import com.sun.jna.Memory;
import com.sun.jna.NativeLong;
import com.sun.jna.Pointer;
import com.sun.jna.ptr.IntByReference;
import javax.imageio.ImageIO;
import java.awt.image.BufferedImage;
import java.io.*;
import java.text.SimpleDateFormat;
import java.util.Scanner;
public class AccessNew {
static NetSDKLib netsdkApi = NetSDKLib.NETSDK_INSTANCE;
// 设备信息
String m_strIp = "172.5.1.33";
int m_nPort = 37777;
String m_strUser = "admin";
String m_strPassword = "admin123";
// 接口调用超时时间
private static final int TIME_OUT = 6 * 1000;
private NET_DEVICEINFO_Ex deviceinfo = new NET_DEVICEINFO_Ex();
private static LLong loginHandle = new LLong(0); // 登陆句柄
private static LLong m_hAttachHandle = new LLong(0); // 订阅句柄
// 设备断线回调: 通过 CLIENT_Init 设置该回调函数,当设备出现断线时,SDK会调用该函数
public static class DisConnectCallback implements fDisConnect{
private DisConnectCallback() {}
private static class CallBackHolder {
private static final DisConnectCallback cb = new DisConnectCallback();
}
public static final DisConnectCallback getInstance() {
return CallBackHolder.cb;
}
public void invoke(LLong lLoginID, String pchDVRIP, int nDVRPort, Pointer dwUser) {
System.out.printf("Device[%s] Port[%d] Disconnect!\n" , pchDVRIP , nDVRPort);
}
}
// 网络连接恢复,设备重连成功回调
// 通过 CLIENT_SetAutoReconnect 设置该回调函数,当已断线的设备重连成功时,SDK会调用该函数
public static class HaveReConnectCallback implements fHaveReConnect{
private HaveReConnectCallback() {}
private static class CallBackHolder {
private static final HaveReConnectCallback cb = new HaveReConnectCallback();
}
public static final HaveReConnectCallback getInstance() {
return CallBackHolder.cb;
}
public void invoke(LLong loginHandle, String pchDVRIP, int nDVRPort, Pointer dwUser) {
System.out.printf("ReConnect Device[%s] Port[%d]\n", pchDVRIP, nDVRPort);
}
}
public void InitTest() {
// 初始化SDK库,必须调用
netsdkApi.CLIENT_Init(DisConnectCallback.getInstance(), null);
// 设置断线重连回调接口,设置过断线重连成功回调函数后,当设备出现断线情况,SDK内部会自动进行重连操作
// 此操作为可选操作,但建议用户进行设置
netsdkApi.CLIENT_SetAutoReconnect(HaveReConnectCallback.getInstance(), null);
// 设置登录超时时间和尝试次数,可选
int waitTime = 5000; // 登录请求响应超时时间设置为5S
int tryTimes = 3; // 登录时尝试建立链接3次
netsdkApi.CLIENT_SetConnectTime(waitTime, tryTimes);
// 设置更多网络参数,NET_PARAM的nWaittime,nConnectTryNum成员与CLIENT_SetConnectTime
// 接口设置的登录设备超时时间和尝试次数意义相同,可选
NET_PARAM netParam = new NET_PARAM();
netParam.nConnectTime = 10000; // 登录时尝试建立链接的超时时间
netParam.nGetDevInfoTime = 5000;
netsdkApi.CLIENT_SetNetworkParam(netParam);
// 打开日志,可选
LOG_SET_PRINT_INFO setLog = new LOG_SET_PRINT_INFO();
File path = new File("./sdklog/");
if (!path.exists()) {
path.mkdir();
}
String logPath = path.getAbsoluteFile().getParent()
+ "/sdklog/sdklog.log";
System.out.println(logPath);
setLog.bSetFilePath = 1;
System.arraycopy(logPath.getBytes(), 0, setLog.szLogFilePath, 0,
logPath.getBytes().length);
setLog.bSetPrintStrategy = 1;
setLog.nPrintStrategy = 0;
boolean bLogopen = netsdkApi.CLIENT_LogOpen(setLog);
if (!bLogopen) {
System.err.println("Failed to open NetSDK log !!!");
}
// 向设备登入
//入参
NET_IN_LOGIN_WITH_HIGHLEVEL_SECURITY pstInParam=new NET_IN_LOGIN_WITH_HIGHLEVEL_SECURITY();
pstInParam.nPort=m_nPort;
pstInParam.szIP=m_strIp.getBytes();
pstInParam.szPassword=m_strPassword.getBytes();
pstInParam.szUserName=m_strUser.getBytes();
//出参
NET_OUT_LOGIN_WITH_HIGHLEVEL_SECURITY pstOutParam=new NET_OUT_LOGIN_WITH_HIGHLEVEL_SECURITY();
pstOutParam.stuDeviceInfo=deviceinfo;
//loginHandle = netsdk.CLIENT_LoginEx2(m_strIp, m_nPort, m_strUser, m_strPassword, 0, null, m_stDeviceInfo, nError);
loginHandle = netsdkApi.CLIENT_LoginWithHighLevelSecurity(pstInParam, pstOutParam);
if (loginHandle.longValue() != 0) {
System.out.printf("Login Device[%s] Port[%d]Success!\n", m_strIp,
m_nPort);
} else {
System.out.printf(
"Login Device[%s] Port[%d]Fail.Last Error[0x%x]\n",
m_strIp, m_nPort, netsdkApi.CLIENT_GetLastError());
EndTest();
}
}
public void EndTest() {
System.out.println("End Test");
if (loginHandle.longValue() != 0) {
netsdkApi.CLIENT_Logout(loginHandle);
}
System.out.println("See You...");
// 工程关闭时,释放SDK资源
netsdkApi.CLIENT_Cleanup();
System.exit(0);
}
// 获取当前时间
public String getDate() {
SimpleDateFormat simpleDate = new SimpleDateFormat(
"yyyy-MM-dd HH:mm:ss");
String date = simpleDate.format(new java.util.Date()).replace(" ", "_")
.replace(":", "-");
return date;
}
/**
* 获取接口错误码
*
* @return
*/
public static String getErrorCode() {
return " { error code: ( 0x80000000|"
+ (netsdkApi.CLIENT_GetLastError() & 0x7fffffff)
+ " ). 参考 NetSDKLib.java }";
}
/************************************************************************************************
* 获取或推送比对成功及失败记录(包括比对照片, 这个是通过触发事件,接收信息
************************************************************************************************/
/**
* 订阅
*/
public void realLoadPicture() {
int bNeedPicture = 1; // 是否需要图片
int ChannelId = 0; // -1代表全通道
m_hAttachHandle = netsdkApi.CLIENT_RealLoadPictureEx(loginHandle,
ChannelId, NetSDKLib.EVENT_IVS_ALL, bNeedPicture,
fAnalyzerDataCB.getInstance(), null, null);
if (m_hAttachHandle.longValue() != 0) {
System.out.println("智能订阅成功.");
} else {
System.err.println("智能订阅失败." + getErrorCode());
return;
}
}
/**
* 取消订阅
*
* @param m_hAttachHandle
* 智能订阅句柄
*/
public void stopRealLoadPicture() {
if (0 != m_hAttachHandle.longValue()) {
netsdkApi.CLIENT_StopLoadPic(m_hAttachHandle);
m_hAttachHandle.setValue(0);
System.out.println("停止智能订阅.");
}
}
/**
* 智能报警事件回调
*/
public static class fAnalyzerDataCB implements
fAnalyzerDataCallBack {
private BufferedImage snapBufferedImage = null;
private BufferedImage idBufferedImage = null;
private fAnalyzerDataCB() {
}
private static class fAnalyzerDataCBHolder {
private static final fAnalyzerDataCB instance = new fAnalyzerDataCB();
}
public static fAnalyzerDataCB getInstance() {
return fAnalyzerDataCBHolder.instance;
}
@Override
public int invoke(LLong lAnalyzerHandle, int dwAlarmType,
Pointer pAlarmInfo, Pointer pBuffer, int dwBufSize,
Pointer dwUser, int nSequence, Pointer reserved) {
System.out.println("dwAlarmType:" + dwAlarmType);
File path = new File("./AccessPicture/");
if (!path.exists()) {
path.mkdir();
}
switch (dwAlarmType) {
case NetSDKLib.EVENT_IVS_ACCESS_CTL: // /< 门禁事件
{
DEV_EVENT_ACCESS_CTL_INFO msg = new DEV_EVENT_ACCESS_CTL_INFO();
ToolKits.GetPointerData(pAlarmInfo, msg);
System.out.println("事件名称 :" + new String(msg.szName).trim());
if (msg.emEventType == 1) {
System.out.println("门禁事件类型 : 进门!");
} else if (msg.emEventType == 2) {
System.out.println("门禁事件类型 : 出门!");
}
if (msg.bStatus == 1) {
System.out.println("刷卡结果 : 成功!");
} else if (msg.bStatus == 0) {
System.out.println("刷卡结果 : 失败!");
}
System.out.println("卡类型:" + msg.emCardType);
System.out.println("开门方式:" + msg.emOpenMethod);
System.out.println("卡号 :" + new String(msg.szCardNo).trim());
System.out.println("开门用户 :" + new String(msg.szUserID).trim());
System.out.println("开门失败原因错误码:" + msg.nErrorCode);
System.out.println("考勤状态:" + msg.emAttendanceState);
System.out.println("卡命名 :" + new String(msg.szCardName).trim());
System.out.println("相似度:" + msg.uSimilarity);
System.out.println("身份证号:"
+ new String(msg.szCitizenIDNo).trim());
System.out.println("当前事件是否为采集卡片:" + msg.emCardState);
System.out.println("szSN:"
+ new String(msg.szSN).trim());
String facePicPath = "";
for (int i = 0; i < msg.nImageInfoCount; i++) {
facePicPath = path + "\\" + System.currentTimeMillis()
+ "人脸图.jpg"; // 保存图片地址
byte[] faceBuf = pBuffer.getByteArray(
msg.stuImageInfo[i].nOffSet,
msg.stuImageInfo[i].nLength);
ByteArrayInputStream byteArrInputFace = new ByteArrayInputStream(
faceBuf);
try {
BufferedImage bufferedImage = ImageIO
.read(byteArrInputFace);
if (bufferedImage != null) {
ImageIO.write(bufferedImage, "jpg", new File(
facePicPath));
System.out.println("人脸图保存路径:" + facePicPath);
}
} catch (IOException e2) {
e2.printStackTrace();
}
}
break;
}
case NetSDKLib.EVENT_IVS_CITIZEN_PICTURE_COMPARE: //人证比对事件
{
DEV_EVENT_CITIZEN_PICTURE_COMPARE_INFO msg = new DEV_EVENT_CITIZEN_PICTURE_COMPARE_INFO();
ToolKits.GetPointerData(pAlarmInfo, msg);
try {
System.out.println("事件发生时间:" + msg.stuUTC.toString());
System.out.println("事件名称 :" + new String(msg.szName, "GBK").trim());
// 人证比对结果,相似度大于等于阈值认为比对成功, 1-表示成功, 0-表示失败
System.out.println("比对结果:" + msg.bCompareResult);
System.out.println("两张图片的相似度:" + msg.nSimilarity);
System.out.println("检测阈值:" + msg.nThreshold);
if (msg.emSex == 1) {
System.out.println("性别:男");
}else if (msg.emSex == 2){
System.out.println("性别:女");
}else {
System.out.println("性别:未知");
}
// 民族
System.out.println("民族:" + msg.nEthnicity);
System.out.println("居民姓名:" + new String(msg.szCitizen, "GBK").trim());
System.out.println("住址:" + new String(msg.szAddress, "GBK").trim());
System.out.println("身份证号:" + new String(msg.szNumber).trim());
System.out.println("签发机关:" + new String(msg.szAuthority, "GBK").trim());
System.out.println("出生日期:" + msg.stuBirth.toStringTimeEx());
System.out.println("有效起始日期:" + msg.stuValidityStart.toStringTimeEx());
if (msg.bLongTimeValidFlag == 1) {
System.out.println("有效截止日期:永久");
}else{
System.out.println("有效截止日期:"+ msg.stuValidityEnd.toStringTimeEx());
}
System.out.println("IC卡号:" + new String(msg.szCardNo, "GBK").trim());
} catch (Exception e) {
e.printStackTrace();
}
// 拍摄照片
String strFileName = path + "\\" + System.currentTimeMillis() + "citizen_snap.jpg";
byte[] snapBuffer = pBuffer.getByteArray(msg.stuImageInfo[0].dwOffSet, msg.stuImageInfo[0].dwFileLenth);
ByteArrayInputStream snapArrayInputStream = new ByteArrayInputStream(snapBuffer);
try {
snapBufferedImage = ImageIO.read(snapArrayInputStream);
if(snapBufferedImage == null) {
return 0;
}
ImageIO.write(snapBufferedImage, "jpg", new File(strFileName));
} catch (IOException e) {
e.printStackTrace();
}
// 身份证照片
strFileName = path + "\\" + System.currentTimeMillis() + "citizen_id.jpg";
byte[] idBuffer = pBuffer.getByteArray(msg.stuImageInfo[1].dwOffSet, msg.stuImageInfo[1].dwFileLenth);
ByteArrayInputStream idArrayInputStream = new ByteArrayInputStream(idBuffer);
try {
idBufferedImage = ImageIO.read(idArrayInputStream);
if(idBufferedImage == null) {
return 0;
}
ImageIO.write(idBufferedImage, "jpg", new File(strFileName));
} catch (IOException e) {
e.printStackTrace();
}
break;
}
case NetSDKLib.EVENT_IVS_FACEDETECT: { // 人脸检测事件
DEV_EVENT_FACEDETECT_INFO msg = new DEV_EVENT_FACEDETECT_INFO();
ToolKits.GetPointerData(pAlarmInfo, msg);
//System.out.println("人的运动速度 :" + msg.stuObject.Speed);
}
default:
break;
}
return 0;
}
}
/*
* 报警事件回调 -----门禁事件(对应结构体 ALARM_ACCESS_CTL_EVENT_INFO)
*/
private static class fAlarmAccessDataCB implements fMessCallBack {
private fAlarmAccessDataCB() {
}
private static class fAlarmDataCBHolder {
private static fAlarmAccessDataCB instance = new fAlarmAccessDataCB();
}
public static fAlarmAccessDataCB getInstance() {
return fAlarmDataCBHolder.instance;
}
public boolean invoke(int lCommand, LLong lLoginID, Pointer pStuEvent,
int dwBufLen, String strDeviceIP, NativeLong nDevicePort,
Pointer dwUser) {
System.out.printf("command = %x\n", lCommand);
switch (lCommand) {
case NetSDKLib.NET_ALARM_ACCESS_CTL_EVENT: // 设备请求对方发起对讲事件
{
ALARM_ACCESS_CTL_EVENT_INFO msg = new ALARM_ACCESS_CTL_EVENT_INFO();
ToolKits.GetPointerData(pStuEvent, msg);
//PrintStruct.print(msg);
break;
}
}
return true;
}
}
/**
* 订阅报警信息
*
* @return
*/
public void startListen() {
// 设置报警回调函数
netsdkApi.CLIENT_SetDVRMessCallBack(fAlarmAccessDataCB.getInstance(),
null);
// 订阅报警
boolean bRet = netsdkApi.CLIENT_StartListenEx(loginHandle);
if (!bRet) {
System.err.println("订阅报警失败! LastError = 0x%x\n"
+ netsdkApi.CLIENT_GetLastError());
} else {
System.out.println("订阅报警成功.");
}
}
/**
* 取消订阅报警信息
*
* @return
*/
public void stopListen() {
// 停止订阅报警
boolean bRet = netsdkApi.CLIENT_StopListen(loginHandle);
if (bRet) {
System.out.println("取消订阅报警信息.");
}
}
/************************************************************************************************
* 用户操作:添加/修改/删除/获取/清空
************************************************************************************************/
/**
* 查询所有用户信息
*/
public void queryAllUser() {
String userId = "1011";
// ////////////////////////////////////////////////////////////////////////////////////////////////
/**
* 入参
*/
NET_IN_USERINFO_START_FIND stInFind = new NET_IN_USERINFO_START_FIND();
// 用户ID, 为空或者不填,查询所有用户
// System.arraycopy(userId.getBytes(), 0, stInFind.szUserID, 0,
// userId.getBytes().length);
/**
* 出参
*/
NET_OUT_USERINFO_START_FIND stOutFind = new NET_OUT_USERINFO_START_FIND();
LLong lFindHandle = netsdkApi.CLIENT_StartFindUserInfo(loginHandle,
stInFind, stOutFind, TIME_OUT);
if (lFindHandle.longValue() == 0) {
System.err.println("StartFindUserInfo Failed, " + getErrorCode());
return;
}
System.out.println("符合查询条件的总数:" + stOutFind.nTotalCount);
if (stOutFind.nTotalCount <= 0) {
return;
}
// ////////////////////////////////////////////////////////////////////////////////////////////////
int startNo = 0; // 起始序号
int nFindCount = stOutFind.nCapNum == 0 ? 10 : stOutFind.nCapNum; // 每次查询的个数
while (true) {
// 用户信息
NET_ACCESS_USER_INFO[] userInfos = new NET_ACCESS_USER_INFO[nFindCount];
for (int i = 0; i < userInfos.length; i++) {
userInfos[i] = new NET_ACCESS_USER_INFO();
}
/**
* 入参
*/
NET_IN_USERINFO_DO_FIND stInDoFind = new NET_IN_USERINFO_DO_FIND();
// 起始序号
stInDoFind.nStartNo = startNo;
// 本次查询的条数
stInDoFind.nCount = nFindCount;
/**
* 出参
*/
NET_OUT_USERINFO_DO_FIND stOutDoFind = new NET_OUT_USERINFO_DO_FIND();
// 用户分配内存的个数
stOutDoFind.nMaxNum = nFindCount;
stOutDoFind.pstuInfo = new Memory(userInfos[0].size() * nFindCount);
stOutDoFind.pstuInfo.clear(userInfos[0].size() * nFindCount);
ToolKits.SetStructArrToPointerData(userInfos, stOutDoFind.pstuInfo);
if (netsdkApi.CLIENT_DoFindUserInfo(lFindHandle, stInDoFind,
stOutDoFind, TIME_OUT)) {
ToolKits.GetPointerDataToStructArr(stOutDoFind.pstuInfo,
userInfos);
if (stOutDoFind.nRetNum <= 0) {
break;
}
for (int i = 0; i < stOutDoFind.nRetNum; i++) {
System.out.println("[" + (startNo + i) + "]用户ID:"
+ new String(userInfos[i].szUserID).trim());
try {
System.out
.println("["
+ (startNo + i)
+ "]用户名称:"
+ new String(userInfos[i].szName, "GBK")
.trim());
} catch (UnsupportedEncodingException e) {
e.printStackTrace();
}
System.out.println("[" + (startNo + i) + "]密码:"
+ new String(userInfos[i].szPsw).trim());
for (int j = 0; j < userInfos[i].nRoom; j++) {
System.out
.println("["
+ (startNo + i)
+ "]用户ID:"
+ new String(
userInfos[i].szRoomNos[j].szRoomNo)
.trim());
}
}
}
if (stOutDoFind.nRetNum < nFindCount) {
break;
} else {
startNo += nFindCount;
}
}
// ////////////////////////////////////////////////////////////////////////////////////////////////
// 停止查询
if (lFindHandle.longValue() != 0) {
netsdkApi.CLIENT_StopFindUserInfo(lFindHandle);
lFindHandle.setValue(0);
}
}
/**
* 用户信息
*/
public class USER_INFO {
public String userId; // 用户ID
public String userName; // 用户名
public String passwd; // 密码
public String roomNo; // 房间号
public void setUser(String userId, String userName, String passwd,
String roomNo) {
this.userId = userId;
this.userName = userName;
this.passwd = passwd;
this.roomNo = roomNo;
}
}
/**
* 批量添加/修改用户
*/
public void addUser() {
// 此demo添加两个用户
USER_INFO[] userInfos = new USER_INFO[2];
for (int i = 0; i < userInfos.length; i++) {
userInfos[i] = new USER_INFO();
//String userIdtemp = Integer.toString(i);
//userInfos[i].setUser(userIdtemp, "张三", "123456", "101");
}
userInfos[0].setUser("1011", "张三", "123456", "101");
userInfos[1].setUser("2022", "李四", "456789", "202");
// 用户操作类型
// 添加用户
int emtype = NET_EM_ACCESS_CTL_USER_SERVICE.NET_EM_ACCESS_CTL_USER_SERVICE_INSERT;
// 添加的用户个数
int nMaxNum = userInfos.length;
/**
* 用户信息数组
*/
// 先初始化用户信息数组
NET_ACCESS_USER_INFO[] users = new NET_ACCESS_USER_INFO[nMaxNum];
// 初始化返回的失败信息数组
FAIL_CODE[] failCodes = new FAIL_CODE[nMaxNum];
for (int i = 0; i < nMaxNum; i++) {
users[i] = new NET_ACCESS_USER_INFO();
failCodes[i] = new FAIL_CODE();
}
/**
* 用户信息赋值
*/
for (int i = 0; i < nMaxNum; i++) {
// 用户ID, 用于后面的添加卡、人脸、指纹
System.arraycopy(userInfos[i].userId.getBytes(), 0,
users[i].szUserID, 0, userInfos[i].userId.getBytes().length);
// 用户名称
try {
System.arraycopy(userInfos[i].userName.getBytes("GBK"), 0,
users[i].szName, 0,
userInfos[i].userName.getBytes("GBK").length);
} catch (UnsupportedEncodingException e) {
e.printStackTrace();
}
// 用户类型
users[i].emUserType = NET_ENUM_USER_TYPE.NET_ENUM_USER_TYPE_NORMAL;
// 密码, UserID+密码开门时密码
System.arraycopy(
(userInfos[i].userId + userInfos[i].passwd).getBytes(),
0,
users[i].szPsw,
0,
(userInfos[i].userId + userInfos[i].passwd).getBytes().length);
// 来宾卡的通行次数
users[i].nUserTime = 100;
// 有效门数, 门个数 表示双门控制器
users[i].nDoorNum = 1;
// 有权限的门序号, 表示第一个门有权限
users[i].nDoors[0] = 0;
// 与门数对应
users[i].nTimeSectionNum = 1;
// 表示第一个门全天有效
users[i].nTimeSectionNo[0] = 255;
// 开始有效期
users[i].stuValidBeginTime.setTime(2019, 3, 29, 14, 1, 1);
// 结束有效期
users[i].stuValidEndTime.setTime(2023, 4, 1, 14, 1, 1);
}
// /////////////////////////// 以下固定写法
// /////////////////////////////////////
/**
* 入参
*/
NET_IN_ACCESS_USER_SERVICE_INSERT stIn = new NET_IN_ACCESS_USER_SERVICE_INSERT();
stIn.nInfoNum = nMaxNum;
stIn.pUserInfo = new Memory(users[0].size() * nMaxNum); // 申请内存
stIn.pUserInfo.clear(users[0].size() * nMaxNum);
// 将用户信息传给指针
ToolKits.SetStructArrToPointerData(users, stIn.pUserInfo);
/**
* 出参
*/
NET_OUT_ACCESS_USER_SERVICE_INSERT stOut = new NET_OUT_ACCESS_USER_SERVICE_INSERT();
stOut.nMaxRetNum = nMaxNum;
stOut.pFailCode = new Memory(failCodes[0].size() * nMaxNum); // 申请内存
stOut.pFailCode.clear(failCodes[0].size() * nMaxNum);
ToolKits.SetStructArrToPointerData(failCodes, stOut.pFailCode);
stIn.write();
stOut.write();
if (netsdkApi.CLIENT_OperateAccessUserService(loginHandle, emtype,
stIn.getPointer(), stOut.getPointer(), TIME_OUT)) {
// 将指针转为具体的信息
ToolKits.GetPointerDataToStructArr(stOut.pFailCode, failCodes);
/**
* 具体的打印信息
*/
for (int i = 0; i < nMaxNum; i++) {
System.out.println("[" + i + "]添加用户结果:"
+ failCodes[i].nFailCode);
}
} else {
System.err.println("添加用户失败, " + getErrorCode());
}
stIn.read();
stOut.read();
}
/**
* 根据用户ID获取用户信息
*/
public void getUser() {
String[] userIDs = { "1011", "2022" };
// 获取的用户个数
int nMaxNum = userIDs.length;
// /////////////////////////// 以下固定写法
// /////////////////////////////////////
// 用户操作类型
// 获取用户
int emtype = NET_EM_ACCESS_CTL_USER_SERVICE.NET_EM_ACCESS_CTL_USER_SERVICE_GET;
/**
* 用户信息数组
*/
// 先初始化用户信息数组
NET_ACCESS_USER_INFO[] users = new NET_ACCESS_USER_INFO[nMaxNum];
// 初始化返回的失败信息数组
FAIL_CODE[] failCodes = new FAIL_CODE[nMaxNum];
for (int i = 0; i < nMaxNum; i++) {
users[i] = new NET_ACCESS_USER_INFO();
failCodes[i] = new FAIL_CODE();
}
/**
* 入参
*/
NET_IN_ACCESS_USER_SERVICE_GET stIn = new NET_IN_ACCESS_USER_SERVICE_GET();
// 用户ID个数
stIn.nUserNum = userIDs.length;
// 用户ID
for (int i = 0; i < userIDs.length; i++) {
System.arraycopy(userIDs[i].getBytes(), 0,
stIn.szUserIDs[i].szUserID, 0, userIDs[i].getBytes().length);
}
/**
* 出参
*/
NET_OUT_ACCESS_USER_SERVICE_GET stOut = new NET_OUT_ACCESS_USER_SERVICE_GET();
stOut.nMaxRetNum = nMaxNum;
stOut.pUserInfo = new Memory(users[0].size() * nMaxNum); // 申请内存
stOut.pUserInfo.clear(users[0].size() * nMaxNum);
stOut.pFailCode = new Memory(failCodes[0].size() * nMaxNum); // 申请内存
stOut.pFailCode.clear(failCodes[0].size() * nMaxNum);
ToolKits.SetStructArrToPointerData(users, stOut.pUserInfo);
ToolKits.SetStructArrToPointerData(failCodes, stOut.pFailCode);
stIn.write();
stOut.write();
if (netsdkApi.CLIENT_OperateAccessUserService(loginHandle, emtype,
stIn.getPointer(), stOut.getPointer(), TIME_OUT)) {
// 将指针转为具体的信息
ToolKits.GetPointerDataToStructArr(stOut.pUserInfo, users);
ToolKits.GetPointerDataToStructArr(stOut.pFailCode, failCodes);
/**
* 打印具体的信息
*/
for (int i = 0; i < nMaxNum; i++) {
try {
System.out.println("[" + i + "]用户名:"
+ new String(users[i].szName, "GBK").trim());
} catch (UnsupportedEncodingException e) {
e.printStackTrace();
}
System.out.println("[" + i + "]密码:"
+ new String(users[i].szPsw).trim());
System.out.println("[" + i + "]查询用户结果:"
+ failCodes[i].nFailCode);
}
} else {
System.err.println("查询用户失败, " + getErrorCode());
ToolKits.GetPointerDataToStructArr(stOut.pUserInfo, users);
ToolKits.GetPointerDataToStructArr(stOut.pFailCode, failCodes);
/**
* 打印具体的信息
*/
for (int i = 0; i < nMaxNum; i++) {
try {
System.out.println("[" + i + "]用户名:"
+ new String(users[i].szName, "GBK").trim());
} catch (UnsupportedEncodingException e) {
e.printStackTrace();
}
System.out.println("[" + i + "]密码:"
+ new String(users[i].szPsw).trim());
System.out.println("[" + i + "]查询用户结果:"
+ failCodes[i].nFailCode);
}
}
stIn.read();
stOut.read();
}
/**
* 删除指定用户ID的用户
*/
public void deleteUser() {
String[] userIDs = { "1011", "2022" };
// 删除的用户个数
int nMaxNum = userIDs.length;
// /////////////////////////// 以下固定写法
// /////////////////////////////////////
// 用户操作类型
// 删除用户
int emtype = NET_EM_ACCESS_CTL_USER_SERVICE.NET_EM_ACCESS_CTL_USER_SERVICE_REMOVE;
// 初始化返回的失败信息数组
FAIL_CODE[] failCodes = new FAIL_CODE[nMaxNum];
for (int i = 0; i < nMaxNum; i++) {
failCodes[i] = new FAIL_CODE();
}
/**
* 入参
*/
NET_IN_ACCESS_USER_SERVICE_REMOVE stIn = new NET_IN_ACCESS_USER_SERVICE_REMOVE();
// 用户ID个数
stIn.nUserNum = userIDs.length;
// 用户ID
for (int i = 0; i < userIDs.length; i++) {
System.arraycopy(userIDs[i].getBytes(), 0,
stIn.szUserIDs[i].szUserID, 0, userIDs[i].getBytes().length);
}
/**
* 出参
*/
NET_OUT_ACCESS_USER_SERVICE_REMOVE stOut = new NET_OUT_ACCESS_USER_SERVICE_REMOVE();
stOut.nMaxRetNum = nMaxNum;
stOut.pFailCode = new Memory(failCodes[0].size() * nMaxNum); // 申请内存
stOut.pFailCode.clear(failCodes[0].size() * nMaxNum);
ToolKits.SetStructArrToPointerData(failCodes, stOut.pFailCode);
stIn.write();
stOut.write();
if (netsdkApi.CLIENT_OperateAccessUserService(loginHandle, emtype,
stIn.getPointer(), stOut.getPointer(), TIME_OUT)) {
// 将指针转为具体的信息
ToolKits.GetPointerDataToStructArr(stOut.pFailCode, failCodes);
/**
* 打印具体的信息
*/
for (int i = 0; i < nMaxNum; i++) {
System.out.println("[" + i + "]删除用户结果:"
+ failCodes[i].nFailCode);
}
} else {
System.err.println("删除用户失败, " + getErrorCode());
}
stIn.read();
stOut.read();
}
/**
* 清空所有用户
*/
public void clearUser() {
// 用户操作类型
// 清空用户
int emtype = NET_EM_ACCESS_CTL_USER_SERVICE.NET_EM_ACCESS_CTL_USER_SERVICE_CLEAR;
/**
* 入参
*/
NET_IN_ACCESS_USER_SERVICE_CLEAR stIn = new NET_IN_ACCESS_USER_SERVICE_CLEAR();
/**
* 出参
*/
NET_OUT_ACCESS_USER_SERVICE_CLEAR stOut = new NET_OUT_ACCESS_USER_SERVICE_CLEAR();
stIn.write();
stOut.write();
if (netsdkApi.CLIENT_OperateAccessUserService(loginHandle, emtype,
stIn.getPointer(), stOut.getPointer(), TIME_OUT)) {
System.out.println("清空用户成功!");
} else {
System.err.println("清空用户失败, " + getErrorCode());
}
stIn.read();
stOut.read();
}
/************************************************************************************************
* 卡操作:添加/修改/删除/获取/清空 一个用户最多添加5张卡
************************************************************************************************/
/**
* 查询所有卡信息
*/
public void queryAllCard() {
String userId = "1011";
// ////////////////////////////////////////////////////////////////////////////////////////////////
/**
* 入参
*/
NET_IN_CARDINFO_START_FIND stInFind = new NET_IN_CARDINFO_START_FIND();
// 用户ID, 为空或者不填,查询所有用户的所有卡
System.arraycopy(userId.getBytes(), 0, stInFind.szUserID, 0,
userId.getBytes().length);
/**
* 出参
*/
NET_OUT_CARDINFO_START_FIND stOutFind = new NET_OUT_CARDINFO_START_FIND();
LLong lFindHandle = netsdkApi.CLIENT_StartFindCardInfo(loginHandle,
stInFind, stOutFind, TIME_OUT);
if (lFindHandle.longValue() == 0) {
return;
}
System.out.println("符合查询条件的总数:" + stOutFind.nTotalCount);
if (stOutFind.nTotalCount <= 0) {
return;
}
// ////////////////////////////////////////////////////////////////////////////////////////////////
// 起始序号
int startNo = 0;
// 每次查询的个数
int nFindCount = stOutFind.nCapNum == 0 ? 5 : stOutFind.nCapNum;
while (true) {
NET_ACCESS_CARD_INFO[] cardInfos = new NET_ACCESS_CARD_INFO[nFindCount];
for (int i = 0; i < nFindCount; i++) {
cardInfos[i] = new NET_ACCESS_CARD_INFO();
}
/**
* 入参
*/
NET_IN_CARDINFO_DO_FIND stInDoFind = new NET_IN_CARDINFO_DO_FIND();
// 起始序号
stInDoFind.nStartNo = startNo;
// 本次查询的条数
stInDoFind.nCount = nFindCount;
/**
* 出参
*/
NET_OUT_CARDINFO_DO_FIND stOutDoFind = new NET_OUT_CARDINFO_DO_FIND();
stOutDoFind.nMaxNum = nFindCount;
stOutDoFind.pstuInfo = new Memory(cardInfos[0].size() * nFindCount);
stOutDoFind.pstuInfo.clear(cardInfos[0].size() * nFindCount);
ToolKits.SetStructArrToPointerData(cardInfos, stOutDoFind.pstuInfo);
if (netsdkApi.CLIENT_DoFindCardInfo(lFindHandle, stInDoFind,
stOutDoFind, TIME_OUT)) {
if (stOutDoFind.nRetNum <= 0) {
return;
}
ToolKits.GetPointerDataToStructArr(stOutDoFind.pstuInfo,
cardInfos);
for (int i = 0; i < stOutDoFind.nRetNum; i++) {
System.out.println("[" + (startNo + i) + "]用户ID:"
+ new String(cardInfos[i].szUserID).trim());
System.out.println("[" + (startNo + i) + "]卡号:"
+ new String(cardInfos[i].szCardNo).trim());
System.out.println("[" + (startNo + i) + "]卡类型:"
+ cardInfos[i].emType + "\n");
}
}
if (stOutDoFind.nRetNum < nFindCount) {
break;
} else {
startNo += nFindCount;
}
}
// ////////////////////////////////////////////////////////////////////////////////////////////////
// 停止查找
if (lFindHandle.longValue() != 0) {
netsdkApi.CLIENT_StopFindCardInfo(lFindHandle);
lFindHandle.setValue(0);
}
}
/**
* 卡信息
*/
public class CARD_INFO {
public String userId; // 用户ID
public String cardNo; // 卡号
public int emType; // 卡类型
public void setCard(String userId, String cardNo, int emType) {
this.userId = userId;
this.cardNo = cardNo;
this.emType = emType;
}
}
/**
* 根据用户ID添加多张卡 一个用户ID添加多张卡 也可以多个用户ID,分别添加卡
*/
public void addCard() {
CARD_INFO[] cardInfos = new CARD_INFO[4];
for (int i = 0; i < cardInfos.length; i++) {
cardInfos[i] = new CARD_INFO();
}
cardInfos[0].setCard("1011", "JJDHH122", 0);
cardInfos[1].setCard("1011", "YYUU122", 0);
cardInfos[2].setCard("2022", "SSDD122", 0);
cardInfos[3].setCard("2022", "RRUU555", 0);
// 添加的卡的最大个数
int nMaxCount = cardInfos.length;
// 卡片信息
NET_ACCESS_CARD_INFO[] cards = new NET_ACCESS_CARD_INFO[nMaxCount];
for (int i = 0; i < nMaxCount; i++) {
cards[i] = new NET_ACCESS_CARD_INFO();
}
//
FAIL_CODE[] failCodes = new FAIL_CODE[nMaxCount];
for (int i = 0; i < nMaxCount; i++) {
failCodes[i] = new FAIL_CODE();
}
/**
* 卡信息赋值
*/
for (int i = 0; i < nMaxCount; i++) {
// 卡类型
cards[i].emType = cardInfos[i].emType; // NET_ACCESSCTLCARD_TYPE;
// 用户ID
System.arraycopy(cardInfos[i].userId.getBytes(), 0,
cards[i].szUserID, 0, cardInfos[i].userId.getBytes().length);
// 卡号
System.arraycopy(cardInfos[i].cardNo.getBytes(), 0,
cards[i].szCardNo, 0, cardInfos[i].cardNo.getBytes().length);
}
// 卡操作类型
// 添加卡
int emtype = NET_EM_ACCESS_CTL_CARD_SERVICE.NET_EM_ACCESS_CTL_CARD_SERVICE_INSERT;
/**
* 入参
*/
NET_IN_ACCESS_CARD_SERVICE_INSERT stIn = new NET_IN_ACCESS_CARD_SERVICE_INSERT();
stIn.nInfoNum = nMaxCount;
stIn.pCardInfo = new Memory(cards[0].size() * nMaxCount);
stIn.pCardInfo.clear(cards[0].size() * nMaxCount);
ToolKits.SetStructArrToPointerData(cards, stIn.pCardInfo);
/**
* 出参
*/
NET_OUT_ACCESS_CARD_SERVICE_INSERT stOut = new NET_OUT_ACCESS_CARD_SERVICE_INSERT();
stOut.nMaxRetNum = nMaxCount;
stOut.pFailCode = new Memory(failCodes[0].size() * nMaxCount);
stOut.pFailCode.clear(failCodes[0].size() * nMaxCount);
ToolKits.SetStructArrToPointerData(failCodes, stOut.pFailCode);
stIn.write();
stOut.write();
if (netsdkApi.CLIENT_OperateAccessCardService(loginHandle, emtype,
stIn.getPointer(), stOut.getPointer(), TIME_OUT)) {
// 将获取到的结果信息转成 failCodes
ToolKits.GetPointerDataToStructArr(stOut.pFailCode, failCodes);
// 打印具体信息
for (int i = 0; i < nMaxCount; i++) {
System.out.println("[" + i + "]添加卡结果 : "
+ failCodes[i].nFailCode);
}
} else {
System.err.println("添加卡失败, " + getErrorCode());
}
stIn.read();
stOut.read();
}
/**
* 修改多张卡, 不能直接修改卡号,只能删除,重新添加,可以修改卡的其他信息
*/
public void modifyCard() {
CARD_INFO[] cardInfos = new CARD_INFO[4];
for (int i = 0; i < cardInfos.length; i++) {
cardInfos[i] = new CARD_INFO();
}
cardInfos[0].setCard("1011", "JJDHH122", 1);
cardInfos[1].setCard("1011", "YYUU122", 1);
cardInfos[2].setCard("2022", "SSDD122", 1);
cardInfos[3].setCard("2022", "RRUU555", 1);
// 修改的卡的最大个数
int nMaxCount = cardInfos.length;
// 卡片信息
NET_ACCESS_CARD_INFO[] cards = new NET_ACCESS_CARD_INFO[nMaxCount];
for (int i = 0; i < nMaxCount; i++) {
cards[i] = new NET_ACCESS_CARD_INFO();
}
//
FAIL_CODE[] failCodes = new FAIL_CODE[nMaxCount];
for (int i = 0; i < nMaxCount; i++) {
failCodes[i] = new FAIL_CODE();
}
/**
* 卡信息赋值
*/
for (int i = 0; i < nMaxCount; i++) {
// 卡类型
cards[i].emType = cardInfos[i].emType; // NET_ACCESSCTLCARD_TYPE;
// 用户ID
System.arraycopy(cardInfos[i].userId.getBytes(), 0,
cards[i].szUserID, 0, cardInfos[i].userId.getBytes().length);
// 卡号
System.arraycopy(cardInfos[i].cardNo.getBytes(), 0,
cards[i].szCardNo, 0, cardInfos[i].cardNo.getBytes().length);
}
// 卡操作类型
// 修改卡
int emtype = NET_EM_ACCESS_CTL_CARD_SERVICE.NET_EM_ACCESS_CTL_CARD_SERVICE_UPDATE;
/**
* 入参
*/
NET_IN_ACCESS_CARD_SERVICE_UPDATE stIn = new NET_IN_ACCESS_CARD_SERVICE_UPDATE();
stIn.nInfoNum = nMaxCount;
stIn.pCardInfo = new Memory(cards[0].size() * nMaxCount);
stIn.pCardInfo.clear(cards[0].size() * nMaxCount);
ToolKits.SetStructArrToPointerData(cards, stIn.pCardInfo);
/**
* 出参
*/
NET_OUT_ACCESS_CARD_SERVICE_UPDATE stOut = new NET_OUT_ACCESS_CARD_SERVICE_UPDATE();
stOut.nMaxRetNum = nMaxCount;
stOut.pFailCode = new Memory(failCodes[0].size() * nMaxCount);
stOut.pFailCode.clear(failCodes[0].size() * nMaxCount);
ToolKits.SetStructArrToPointerData(failCodes, stOut.pFailCode);
stIn.write();
stOut.write();
if (netsdkApi.CLIENT_OperateAccessCardService(loginHandle, emtype,
stIn.getPointer(), stOut.getPointer(), TIME_OUT)) {
// 将获取到的结果信息转成 failCodes
ToolKits.GetPointerDataToStructArr(stOut.pFailCode, failCodes);
// 打印具体信息
for (int i = 0; i < nMaxCount; i++) {
System.out.println("[" + i + "]修改卡结果 : "
+ failCodes[i].nFailCode);
}
} else {
System.err.println("修改卡失败, " + getErrorCode());
}
stIn.read();
stOut.read();
}
/**
* 根据卡号获取卡信息
*/
public void getCard() {
String[] cardNOs = { "JJDHH122", "YYUU122", "SSDD122", "RRUU555" };
// 修改的卡的最大个数
int nMaxCount = cardNOs.length;
// 卡片信息
NET_ACCESS_CARD_INFO[] cards = new NET_ACCESS_CARD_INFO[nMaxCount];
for (int i = 0; i < nMaxCount; i++) {
cards[i] = new NET_ACCESS_CARD_INFO();
}
//
FAIL_CODE[] failCodes = new FAIL_CODE[nMaxCount];
for (int i = 0; i < nMaxCount; i++) {
failCodes[i] = new FAIL_CODE();
}
// 卡操作类型
// 获取卡信息
int emtype = NET_EM_ACCESS_CTL_CARD_SERVICE.NET_EM_ACCESS_CTL_CARD_SERVICE_GET;
/**
* 入参
*/
NET_IN_ACCESS_CARD_SERVICE_GET stIn = new NET_IN_ACCESS_CARD_SERVICE_GET();
// 卡号数量
stIn.nCardNum = cardNOs.length;
for (int i = 0; i < cardNOs.length; i++) {
// 卡号
System.arraycopy(cardNOs[i].getBytes(), 0,
stIn.szCardNos[i].szCardNo, 0, cardNOs[i].getBytes().length);
}
/**
* 出参
*/
NET_OUT_ACCESS_CARD_SERVICE_GET stOut = new NET_OUT_ACCESS_CARD_SERVICE_GET();
stOut.nMaxRetNum = nMaxCount;
stOut.pCardInfo = new Memory(cards[0].size() * nMaxCount);
stOut.pCardInfo.clear(cards[0].size() * nMaxCount);
stOut.pFailCode = new Memory(failCodes[0].size() * nMaxCount);
stOut.pFailCode.clear(failCodes[0].size() * nMaxCount);
ToolKits.SetStructArrToPointerData(cards, stOut.pCardInfo);
ToolKits.SetStructArrToPointerData(failCodes, stOut.pFailCode);
stIn.write();
stOut.write();
if (netsdkApi.CLIENT_OperateAccessCardService(loginHandle, emtype,
stIn.getPointer(), stOut.getPointer(), TIME_OUT)) {
// 将获取到的结果信息转成具体的结构体
ToolKits.GetPointerDataToStructArr(stOut.pCardInfo, cards);
ToolKits.GetPointerDataToStructArr(stOut.pFailCode, failCodes);
// 打印具体信息
for (int i = 0; i < nMaxCount; i++) {
System.out.println("[" + i + "]用户ID : "
+ new String(cards[i].szUserID).trim());
System.out.println("[" + i + "]卡号 : "
+ new String(cards[i].szCardNo).trim());
System.out.println("[" + i + "]卡类型 : " + cards[i].emType);
System.out.println("[" + i + "]查询卡结果 : "
+ failCodes[i].nFailCode + "\n");
}
} else {
System.err.println("查询卡失败, " + getErrorCode());
}
stIn.read();
stOut.read();
}
/**
* 根据卡号删除卡信息
*/
public void deleteCard() {
String[] cardNOs = { "JJDHH122", "YYUU122" };
// 删除的卡的最大个数
int nMaxCount = cardNOs.length;
//
FAIL_CODE[] failCodes = new FAIL_CODE[nMaxCount];
for (int i = 0; i < nMaxCount; i++) {
failCodes[i] = new FAIL_CODE();
}
// 卡操作类型
// 删除卡信息
int emtype = NET_EM_ACCESS_CTL_CARD_SERVICE.NET_EM_ACCESS_CTL_CARD_SERVICE_REMOVE;
/**
* 入参
*/
NET_IN_ACCESS_CARD_SERVICE_REMOVE stIn = new NET_IN_ACCESS_CARD_SERVICE_REMOVE();
// 卡号数量
stIn.nCardNum = cardNOs.length;
for (int i = 0; i < cardNOs.length; i++) {
// 卡号
System.arraycopy(cardNOs[i].getBytes(), 0,
stIn.szCardNos[i].szCardNo, 0, cardNOs[i].getBytes().length);
}
/**
* 出参
*/
NET_OUT_ACCESS_CARD_SERVICE_REMOVE stOut = new NET_OUT_ACCESS_CARD_SERVICE_REMOVE();
stOut.nMaxRetNum = nMaxCount;
stOut.pFailCode = new Memory(failCodes[0].size() * nMaxCount);
stOut.pFailCode.clear(failCodes[0].size() * nMaxCount);
ToolKits.SetStructArrToPointerData(failCodes, stOut.pFailCode);
stIn.write();
stOut.write();
if (netsdkApi.CLIENT_OperateAccessCardService(loginHandle, emtype,
stIn.getPointer(), stOut.getPointer(), TIME_OUT)) {
// 将获取到的结果信息转成具体的结构体
ToolKits.GetPointerDataToStructArr(stOut.pFailCode, failCodes);
// 打印具体信息
for (int i = 0; i < nMaxCount; i++) {
System.out.println("[" + i + "]删除卡结果 : "
+ failCodes[i].nFailCode);
}
} else {
System.err.println("删除卡失败, " + getErrorCode());
}
stIn.read();
stOut.read();
}
/**
* 清空卡信息
*/
public void clearCard() {
// 卡操作类型
// 清空卡信息
int emtype = NET_EM_ACCESS_CTL_CARD_SERVICE.NET_EM_ACCESS_CTL_CARD_SERVICE_CLEAR;
/**
* 入参
*/
NET_IN_ACCESS_CARD_SERVICE_CLEAR stIn = new NET_IN_ACCESS_CARD_SERVICE_CLEAR();
/**
* 出参
*/
NET_OUT_ACCESS_CARD_SERVICE_CLEAR stOut = new NET_OUT_ACCESS_CARD_SERVICE_CLEAR();
stIn.write();
stOut.write();
if (netsdkApi.CLIENT_OperateAccessCardService(loginHandle, emtype,
stIn.getPointer(), stOut.getPointer(), TIME_OUT)) {
System.out.println("清空卡信息成功!");
} else {
System.err.println("清空卡信息失败, " + getErrorCode());
}
stIn.read();
stOut.read();
}
/************************************************************************************************
* 人脸操作:添加/修改/删除/获取/清空 可以批量添加多个用户的人脸,但是每个用户只能添加一张图片,大小最大200K
************************************************************************************************/
// 获取图片大小
public int GetFileSize(String filePath) {
File f = new File(filePath);
if (f.exists() && f.isFile()) {
return (int) f.length();
} else {
return 0;
}
}
public byte[] GetFacePhotoData(String file) {
int fileLen = GetFileSize(file);
if (fileLen <= 0) {
return null;
}
try {
File infile = new File(file);
if (infile.canRead()) {
FileInputStream in = new FileInputStream(infile);
byte[] buffer = new byte[fileLen];
long currFileLen = 0;
int readLen = 0;
while (currFileLen < fileLen) {
readLen = in.read(buffer);
currFileLen += readLen;
}
in.close();
return buffer;
} else {
System.err.println("Failed to open file %s for read!!!\n");
return null;
}
} catch (Exception e) {
System.err.println("Failed to open file %s for read!!!\n");
e.printStackTrace();
}
return null;
}
/**
* 每个用户的人脸图片信息
*/
public class FACE_INFO {
public String userId; // 用户ID
public byte[] szFacePhotoData; // 图片数据,目前一个用户ID只支持添加一张
public void setFace(String userId, byte[] szFacePhotoData) {
this.userId = userId;
this.szFacePhotoData = szFacePhotoData;
}
}
/**
* 根据用户ID添加人脸, 此demo展示的是添加两个用户的人脸,每个用户仅且只能添加一张人脸
*/
public void addFace() {
// ////////////////////////// 获取图片数据 ///////////////////////
String[] szPaths = { "c:/123.jpg", "d:/timg.jpg" };
byte[] buf1 = GetFacePhotoData(szPaths[0]);
byte[] buf2 = GetFacePhotoData(szPaths[1]);
// //////////////////// 将图片数据传入数组FACE_INFO, 用于存储图片数据
// ////////////////////
FACE_INFO[] faceInfos = new FACE_INFO[2];
for (int i = 0; i < faceInfos.length; i++) {
faceInfos[i] = new FACE_INFO();
//String userIdtemp = Integer.toString(i);
//faceInfos[i].setFace(userIdtemp, buf1);
}
faceInfos[0].setFace("1011", buf1);
faceInfos[1].setFace("2022", buf2);
// ///////////////////////////////////////////////////////////////////////////////////////////
// 以上是获取人脸图片信息
// 以下可以固定写法
// ///////////////////////////////////////////////////////////////////////////////////////////
// 添加人脸的用户最大个数
int nMaxCount = faceInfos.length;
// ////////////////////// 每个用户的人脸信息初始化 ////////////////////////
NET_ACCESS_FACE_INFO[] faces = new NET_ACCESS_FACE_INFO[nMaxCount];
for (int i = 0; i < faces.length; i++) {
faces[i] = new NET_ACCESS_FACE_INFO();
faces[i].nInFacePhotoLen[0] = 200 * 1024;
faces[i].pFacePhotos[0].pFacePhoto = new Memory(200 * 1024); // 人脸照片数据,大小不超过200K
faces[i].pFacePhotos[0].pFacePhoto.clear(200 * 1024);
}
// ////////////////////////////// 人脸信息赋值 ///////////////////////////////
for (int i = 0; i < faces.length; i++) {
// 用户ID
System.arraycopy(faceInfos[i].userId.getBytes(), 0,
faces[i].szUserID, 0, faceInfos[i].userId.getBytes().length);
// 人脸照片个数
faces[i].nFacePhoto = 1;
// 每张照片实际大小
faces[i].nOutFacePhotoLen[0] = faceInfos[i].szFacePhotoData.length;
// 图片数据
faces[i].pFacePhotos[0].pFacePhoto.write(0,
faceInfos[i].szFacePhotoData, 0,
faceInfos[i].szFacePhotoData.length);
}
// ///////////////////////////////////////////////////////////////////////
// 初始化
FAIL_CODE[] failCodes = new FAIL_CODE[nMaxCount];
for (int i = 0; i < failCodes.length; i++) {
failCodes[i] = new FAIL_CODE();
}
// 人脸操作类型
// 添加人脸信息
int emtype = NET_EM_ACCESS_CTL_FACE_SERVICE.NET_EM_ACCESS_CTL_FACE_SERVICE_INSERT;
/**
* 入参
*/
NET_IN_ACCESS_FACE_SERVICE_INSERT stIn = new NET_IN_ACCESS_FACE_SERVICE_INSERT();
stIn.nFaceInfoNum = nMaxCount;
stIn.pFaceInfo = new Memory(faces[0].size() * nMaxCount);
stIn.pFaceInfo.clear(faces[0].size() * nMaxCount);
ToolKits.SetStructArrToPointerData(faces, stIn.pFaceInfo);
/**
* 出参
*/
NET_OUT_ACCESS_FACE_SERVICE_INSERT stOut = new NET_OUT_ACCESS_FACE_SERVICE_INSERT();
stOut.nMaxRetNum = nMaxCount;
stOut.pFailCode = new Memory(failCodes[0].size() * nMaxCount);
stOut.pFailCode.clear(failCodes[0].size() * nMaxCount);
ToolKits.SetStructArrToPointerData(failCodes, stOut.pFailCode);
stIn.write();
stOut.write();
if (netsdkApi.CLIENT_OperateAccessFaceService(loginHandle, emtype,
stIn.getPointer(), stOut.getPointer(), TIME_OUT)) {
// 将获取到的结果信息转成具体的结构体
ToolKits.GetPointerDataToStructArr(stOut.pFailCode, failCodes);
// 打印具体信息
for (int i = 0; i < nMaxCount; i++) {
System.out.println("[" + i + "]添加人脸结果 : "
+ failCodes[i].nFailCode);
}
} else {
System.err.println("添加人脸失败, " + getErrorCode());
// 将获取到的结果信息转成具体的结构体
ToolKits.GetPointerDataToStructArr(stOut.pFailCode, failCodes);
// 打印具体信息
for (int i = 0; i < nMaxCount; i++) {
System.out.println("[" + i + "]添加人脸结果 : "
+ failCodes[i].nFailCode);
}
}
stIn.read();
stOut.read();
}
/**
* 修改人脸
*/
public void modifyFace() {
// //////////////////////////获取图片数据 ///////////////////////
String[] szPaths = { "d:/123.jpg", "d:/girl.jpg" };
byte[] buf1 = GetFacePhotoData(szPaths[0]);
byte[] buf2 = GetFacePhotoData(szPaths[1]);
// //////////////////// 将图片数据传入数组FACE_INFO, 用于存储图片数据
// ////////////////////
// new 两个用户
FACE_INFO[] faceInfos = new FACE_INFO[2];
for (int i = 0; i < faceInfos.length; i++) {
faceInfos[i] = new FACE_INFO();
}
faceInfos[0].setFace("1011", buf1);
faceInfos[1].setFace("2022", buf2);
// ///////////////////////////////////////////////////////////////////////////////////////////
// 以上是获取人脸图片信息
// 以下可以固定写法
// ///////////////////////////////////////////////////////////////////////////////////////////
// 修改人脸的用户最大个数
int nMaxCount = faceInfos.length;
// ////////////////////// 每个用户的人脸信息初始化 ////////////////////////
NET_ACCESS_FACE_INFO[] faces = new NET_ACCESS_FACE_INFO[nMaxCount];
for (int i = 0; i < faces.length; i++) {
faces[i] = new NET_ACCESS_FACE_INFO();
// 根据每个用户的人脸图片的实际个数申请内存
faces[i].nInFacePhotoLen[0] = 200 * 1024;
faces[i].pFacePhotos[0].pFacePhoto = new Memory(200 * 1024); // 人脸照片数据,大小不超过200K
faces[i].pFacePhotos[0].pFacePhoto.clear(200 * 1024);
}
// ////////////////////////////// 人脸信息赋值 ///////////////////////////////
for (int i = 0; i < faces.length; i++) {
// 用户ID
System.arraycopy(faceInfos[i].userId.getBytes(), 0,
faces[i].szUserID, 0, faceInfos[i].userId.getBytes().length);
// 人脸照片个数
faces[i].nFacePhoto = 1;
// 每张照片实际大小
faces[i].nOutFacePhotoLen[0] = faceInfos[i].szFacePhotoData.length;
// 图片数据
faces[i].pFacePhotos[0].pFacePhoto.write(0,
faceInfos[i].szFacePhotoData, 0,
faceInfos[i].szFacePhotoData.length);
}
// ///////////////////////////////////////////////////////////////////////
// 初始化
FAIL_CODE[] failCodes = new FAIL_CODE[nMaxCount];
for (int i = 0; i < failCodes.length; i++) {
failCodes[i] = new FAIL_CODE();
}
// 人脸操作类型
// 修改人脸信息
int emtype = NET_EM_ACCESS_CTL_FACE_SERVICE.NET_EM_ACCESS_CTL_FACE_SERVICE_UPDATE;
/**
* 入参
*/
NET_IN_ACCESS_FACE_SERVICE_UPDATE stIn = new NET_IN_ACCESS_FACE_SERVICE_UPDATE();
stIn.nFaceInfoNum = nMaxCount;
stIn.pFaceInfo = new Memory(faces[0].size() * nMaxCount);
stIn.pFaceInfo.clear(faces[0].size() * nMaxCount);
ToolKits.SetStructArrToPointerData(faces, stIn.pFaceInfo);
/**
* 出参
*/
NET_OUT_ACCESS_FACE_SERVICE_UPDATE stOut = new NET_OUT_ACCESS_FACE_SERVICE_UPDATE();
stOut.nMaxRetNum = nMaxCount;
stOut.pFailCode = new Memory(failCodes[0].size() * nMaxCount);
stOut.pFailCode.clear(failCodes[0].size() * nMaxCount);
ToolKits.SetStructArrToPointerData(failCodes, stOut.pFailCode);
stIn.write();
stOut.write();
if (netsdkApi.CLIENT_OperateAccessFaceService(loginHandle, emtype,
stIn.getPointer(), stOut.getPointer(), TIME_OUT)) {
// 将获取到的结果信息转成具体的结构体
ToolKits.GetPointerDataToStructArr(stOut.pFailCode, failCodes);
// 打印具体信息
for (int i = 0; i < nMaxCount; i++) {
System.out.println("[" + i + "]修改人脸结果 : "
+ failCodes[i].nFailCode);
}
} else {
System.err.println("修改人脸失败, " + getErrorCode());
}
stIn.read();
stOut.read();
}
/**
* 获取人脸信息
*/
public void getFace() {
String[] userIDs = { "1011", "2022" };
// 获取人脸的用户最大个数
int nMaxCount = userIDs.length;
// ////////////////////// 每个用户的人脸信息初始化 ////////////////////////
NET_ACCESS_FACE_INFO[] faces = new NET_ACCESS_FACE_INFO[nMaxCount];
for (int i = 0; i < faces.length; i++) {
faces[i] = new NET_ACCESS_FACE_INFO();
// 根据每个用户的人脸图片的实际个数申请内存,最多5张照片
faces[i].nFacePhoto = 1; // 每个用户图片个数
// 对每张照片申请内存
faces[i].nInFacePhotoLen[0] = 200 * 1024;
faces[i].pFacePhotos[0].pFacePhoto = new Memory(200 * 1024); // 人脸照片数据,大小不超过200K
faces[i].pFacePhotos[0].pFacePhoto.clear(200 * 1024);
}
// 初始化
FAIL_CODE[] failCodes = new FAIL_CODE[nMaxCount];
for (int i = 0; i < failCodes.length; i++) {
failCodes[i] = new FAIL_CODE();
}
// 人脸操作类型
// 获取人脸信息
int emtype = NET_EM_ACCESS_CTL_FACE_SERVICE.NET_EM_ACCESS_CTL_FACE_SERVICE_GET;
/**
* 入参
*/
NET_IN_ACCESS_FACE_SERVICE_GET stIn = new NET_IN_ACCESS_FACE_SERVICE_GET();
stIn.nUserNum = nMaxCount;
for (int i = 0; i < nMaxCount; i++) {
System.arraycopy(userIDs[i].getBytes(), 0,
stIn.szUserIDs[i].szUserID, 0, userIDs[i].getBytes().length);
}
/**
* 出参
*/
NET_OUT_ACCESS_FACE_SERVICE_GET stOut = new NET_OUT_ACCESS_FACE_SERVICE_GET();
stOut.nMaxRetNum = nMaxCount;
stOut.pFaceInfo = new Memory(faces[0].size() * nMaxCount);
stOut.pFaceInfo.clear(faces[0].size() * nMaxCount);
stOut.pFailCode = new Memory(failCodes[0].size() * nMaxCount);
stOut.pFailCode.clear(failCodes[0].size() * nMaxCount);
ToolKits.SetStructArrToPointerData(faces, stOut.pFaceInfo);
ToolKits.SetStructArrToPointerData(failCodes, stOut.pFailCode);
stIn.write();
stOut.write();
if (netsdkApi.CLIENT_OperateAccessFaceService(loginHandle, emtype,
stIn.getPointer(), stOut.getPointer(), TIME_OUT)) {
// 将获取到的结果信息转成具体的结构体
ToolKits.GetPointerDataToStructArr(stOut.pFaceInfo, faces);
ToolKits.GetPointerDataToStructArr(stOut.pFailCode, failCodes);
File path = new File(".");
// 打印具体信息
// nMaxCount 几个用户
for (int i = 0; i < nMaxCount; i++) {
System.out.println("[" + i + "]用户ID : "
+ new String(faces[i].szUserID).trim());
// 保存查询到的图片
String savePath = "";
for (int j = 0; j < faces[i].nFacePhoto; j++) {
if (faces[i].nFacePhoto == 0
|| faces[i].pFacePhotos[j].pFacePhoto == null) {
return;
}
savePath = path.getAbsoluteFile().getParent() + "/"
+ getDate() + "_"
+ new String(faces[i].szUserID).trim() + ".jpg";
System.out.println("路径:" + savePath);
// 人脸图片数据
byte[] buffer = faces[i].pFacePhotos[j].pFacePhoto
.getByteArray(0, faces[i].nOutFacePhotoLen[j]);
ByteArrayInputStream byteInputStream = new ByteArrayInputStream(
buffer);
try {
BufferedImage bufferedImage = ImageIO
.read(byteInputStream);
if (bufferedImage == null) {
return;
}
ImageIO.write(bufferedImage, "jpg", new File(savePath));
} catch (IOException e) {
e.printStackTrace();
}
}
System.out.println("[" + i + "]获取人脸结果 : "
+ failCodes[i].nFailCode);
}
} else {
System.err.println("获取人脸失败, " + getErrorCode());
}
stIn.read();
stOut.read();
}
/**
* 根据用户ID删除人脸
*/
public void deleteFace() {
String[] userIDs = { "1011", "2022" };
// 删除人脸的用户最大个数
int nMaxCount = userIDs.length;
// 初始化
FAIL_CODE[] failCodes = new FAIL_CODE[nMaxCount];
for (int i = 0; i < failCodes.length; i++) {
failCodes[i] = new FAIL_CODE();
}
// 人脸操作类型
// 删除人脸信息
int emtype = NET_EM_ACCESS_CTL_FACE_SERVICE.NET_EM_ACCESS_CTL_FACE_SERVICE_REMOVE;
/**
* 入参
*/
NET_IN_ACCESS_FACE_SERVICE_REMOVE stIn = new NET_IN_ACCESS_FACE_SERVICE_REMOVE();
stIn.nUserNum = nMaxCount;
for (int i = 0; i < nMaxCount; i++) {
System.arraycopy(userIDs[i].getBytes(), 0,
stIn.szUserIDs[i].szUserID, 0, userIDs[i].getBytes().length);
}
/**
* 出参
*/
NET_OUT_ACCESS_FACE_SERVICE_REMOVE stOut = new NET_OUT_ACCESS_FACE_SERVICE_REMOVE();
stOut.nMaxRetNum = nMaxCount;
stOut.pFailCode = new Memory(failCodes[0].size() * nMaxCount);
stOut.pFailCode.clear(failCodes[0].size() * nMaxCount);
ToolKits.SetStructArrToPointerData(failCodes, stOut.pFailCode);
stIn.write();
stOut.write();
if (netsdkApi.CLIENT_OperateAccessFaceService(loginHandle, emtype,
stIn.getPointer(), stOut.getPointer(), TIME_OUT)) {
// 将获取到的结果信息转成具体的结构体
ToolKits.GetPointerDataToStructArr(stOut.pFailCode, failCodes);
// 打印具体信息
for (int i = 0; i < nMaxCount; i++) {
System.out.println("[" + i + "]删除人脸结果 : "
+ failCodes[i].nFailCode);
}
} else {
System.err.println("删除人脸失败, " + getErrorCode());
}
stIn.read();
stOut.read();
}
/**
* 清空所有人脸
*/
public void clearFace() {
// 人脸操作类型
// 清空人脸信息
int emtype = NET_EM_ACCESS_CTL_FACE_SERVICE.NET_EM_ACCESS_CTL_FACE_SERVICE_CLEAR;
/**
* 入参
*/
NET_IN_ACCESS_FACE_SERVICE_CLEAR stIn = new NET_IN_ACCESS_FACE_SERVICE_CLEAR();
/**
* 出参
*/
NET_OUT_ACCESS_FACE_SERVICE_CLEAR stOut = new NET_OUT_ACCESS_FACE_SERVICE_CLEAR();
stIn.write();
stOut.write();
if (netsdkApi.CLIENT_OperateAccessFaceService(loginHandle, emtype,
stIn.getPointer(), stOut.getPointer(), TIME_OUT)) {
System.out.println("清空人脸成功 !");
} else {
System.err.println("清空人脸失败, " + getErrorCode());
}
stIn.read();
stOut.read();
}
/************************************************************************************************
* 指纹操作:添加/修改/删除/获取/清空 一次只能针对一个用户添加/修改/删除指纹操作,并只能对应一个指纹, 每个用户最多添加3个指纹
*
* 如果需要给操作一个用户的指纹,需要循环操作 例: 接口调用: 用户ID:1011 + 一个指纹数据 再次接口调用 用户ID:1011 +
* 一个指纹数据
************************************************************************************************/
/**
* 根据用户ID添加指纹(一个用户ID对应一个指纹)
*/
public void addFingerprint() {
String userId = "1011";
String finger = "xTxpAASFsk3+8hoDh4ky0ghH2oR7hjp658Wp"
+ "Q4eJQyEQBdoFgIerDuhFuAQGhsr6BvQpguuF804HMjpFaIUjOQ"
+ "AJyUSGiAwlCEupSGSFnA3gS7nF2IUUVe62SYVXhcSBoJG5iGSGvJqI"
+ "lZsRkYhksjBNnUmjh4VOEFEpizyGVUnol4oQQohVft6sOQdWh93lzarniBeJK"
+ "4EANhtCKoqEmuA0C4M+im2+/zPJAzCKrcX5OipCtIpF9g6DqQOth32CAA8bUiiGdbog0wqKWofGYtxwecgQhsZi"
+ "ONMO3VqH5p7b8kmGiooaSQfF/MEWilKZ+Dgeg4iJuwYQBgyDJ4uEMfg3/kOsi53VB/++RTaLbf74N/uFY4NzPegFyQNfg3Ot6EXawda"
+ "CO63/fhpAWIS0YehJyoRSg9SR+IfYRFCCbQXnxcrBR4RtTeCJykPKgrU5/rYagr6EvbIOeDhCOoWt5dB/yI"
+ "dDgd3FB8f4BEGDpf3oR/oDQYImAQfJ+kM+iy5x+HXMRUaJznnQtCrGNoteifk4CkUohZaWyIepBTGEdsLX/9qBHoZO0pD"
+ "JGog6iybq+Tn3x1yH7vrbco2HN4R+8s//+EIhhbcW18f3RZqGnx4LfhvXO4qvOvlB+0qQhpc9/L5MVlJH878zUyMvjxF2YSIlVRJUamE"
+ "lNH8nRUGD8niPUp/xI6f28/czRPMPMfH2QvIvQSNEcyNB/zIyRSM/8zXzUvMzYfNFQ/IzUh9CNSf1X//xL0U6MohGebIWlDNWhRZi/xIVgkVP+Hhn"
+ "9f9RAUWhRi8eafk+QXSytDwtFjGCklxSMTK8pNZYFILYkrkkYmS30qhUEcKqtNswRwKFkq8QQSHHkRBtESNRkfhdEbK9ovslIVKMoYYdMtGdgSM0"
+ "ERE1cnIOQQTYoLJkIQJ0gJsNFFTugetWEhME5zESEnLokpsbFFS+kYVfVLGbs"
+ "E4qQTaYgcEOIRPEkfQRJGDhkWsOEmXWoLdpRKKNoA5tRENBoM"
+ "5GEFEkosISZBLUkKlXIHbdkGRRAQHRoAwLDw4NFwgJChglKxEoKiYaGQcSBDIbIy0pNBQWFVVs";
// 初始化指纹数据
NET_ACCESS_FINGERPRINT_INFO fingerprint = new NET_ACCESS_FINGERPRINT_INFO();
/**
* 添加指纹数据
*/
// 用户ID
System.arraycopy(userId.getBytes(), 0, fingerprint.szUserID, 0,
userId.getBytes().length);
// 将字符串转为指纹数据
byte[] fingerPrintBuffer = Base64Util.getDecoder().decode(finger);
// 单个指纹长度
fingerprint.nPacketLen = fingerPrintBuffer.length;
// 指纹包个数
fingerprint.nPacketNum = 1;
// 指纹数据
// 先申请内存
fingerprint.szFingerPrintInfo = new Memory(fingerPrintBuffer.length);
fingerprint.szFingerPrintInfo.clear(fingerPrintBuffer.length);
fingerprint.szFingerPrintInfo.write(0, fingerPrintBuffer, 0,
fingerPrintBuffer.length);
// //////////////////////////////////////////////////////////////////////////////////////////
// 初始化
FAIL_CODE failCode = new FAIL_CODE();
// 指纹操作类型
// 添加指纹信息
int emtype = NET_EM_ACCESS_CTL_FINGERPRINT_SERVICE.NET_EM_ACCESS_CTL_FINGERPRINT_SERVICE_INSERT;
/**
* 入参
*/
NET_IN_ACCESS_FINGERPRINT_SERVICE_INSERT stIn = new NET_IN_ACCESS_FINGERPRINT_SERVICE_INSERT();
stIn.nFpNum = 1;
stIn.pFingerPrintInfo = fingerprint.getPointer();
/**
* 出参
*/
NET_OUT_ACCESS_FINGERPRINT_SERVICE_INSERT stOut = new NET_OUT_ACCESS_FINGERPRINT_SERVICE_INSERT();
stOut.nMaxRetNum = 1;
stOut.pFailCode = failCode.getPointer();
stIn.write();
stOut.write();
fingerprint.write();
failCode.write();
if (netsdkApi.CLIENT_OperateAccessFingerprintService(loginHandle,
emtype, stIn.getPointer(), stOut.getPointer(), TIME_OUT)) {
// 打印具体信息
System.out.println("添加指纹结果 : " + failCode.nFailCode);
} else {
System.err.println("添加指纹失败, " + getErrorCode());
}
fingerprint.read();
failCode.read();
stIn.read();
stOut.read();
}
/**
* 根据用户ID修改指纹(一个用户ID对应一个指纹)
*/
public void modifyFingerprint() {
String userId = "1011";
String finger = "xTxpAASFsk3+8hoDh4ky0ghH2oR7hjp658Wp"
+ "Q4eJQyEQBdoFgIerDuhFuAQGhsr6BvQpguuF804HMjpFaIUjOQ"
+ "AJyUSGiAwlCEupSGSFnA3gS7nF2IUUVe62SYVXhcSBoJG5iGSGvJqI"
+ "lZsRkYhksjBNnUmjh4VOEFEpizyGVUnol4oQQohVft6sOQdWh93lzarniBeJK"
+ "4EANhtCKoqEmuA0C4M+im2+/zPJAzCKrcX5OipCtIpF9g6DqQOth32CAA8bUiiGdbog0wqKWofGYtxwecgQhsZi"
+ "ONMO3VqH5p7b8kmGiooaSQfF/MEWilKZ+Dgeg4iJuwYQBgyDJ4uEMfg3/kOsi53VB/++RTaLbf74N/uFY4NzPegFyQNfg3Ot6EXawda"
+ "CO63/fhpAWIS0YehJyoRSg9SR+IfYRFCCbQXnxcrBR4RtTeCJykPKgrU5/rYagr6EvbIOeDhCOoWt5dB/yI"
+ "dDgd3FB8f4BEGDpf3oR/oDQYImAQfJ+kM+iy5x+HXMRUaJznnQtCrGNoteifk4CkUohZaWyIepBTGEdsLX/9qBHoZO0pD"
+ "JGog6iybq+Tn3x1yH7vrbco2HN4R+8s//+EIhhbcW18f3RZqGnx4LfhvXO4qvOvlB+0qQhpc9/L5MVlJH878zUyMvjxF2YSIlVRJUamE"
+ "lNH8nRUGD8niPUp/xI6f28/czRPMPMfH2QvIvQSNEcyNB/zIyRSM/8zXzUvMzYfNFQ/IzUh9CNSf1X//xL0U6MohGebIWlDNWhRZi/xIVgkVP+Hhn"
+ "9f9RAUWhRi8eafk+QXSytDwtFjGCklxSMTK8pNZYFILYkrkkYmS30qhUEcKqtNswRwKFkq8QQSHHkRBtESNRkfhdEbK9ovslIVKMoYYdMtGdgSM0"
+ "ERE1cnIOQQTYoLJkIQJ0gJsNFFTugetWEhME5zESEnLokpsbFFS+kYVfVLGbs"
+ "E4qQTaYgcEOIRPEkfQRJGDhkWsOEmXWoLdpRKKNoA5tRENBoM"
+ "5GEFEkosISZBLUkKlXIHbdkGRRAQHRoAwLDw4NFwgJChglKxEoKiYaGQcSBDIbIy0pNBQWFVVs";
// 初始化指纹数据
NET_ACCESS_FINGERPRINT_INFO fingerprint = new NET_ACCESS_FINGERPRINT_INFO();
/**
* 添加指纹数据
*/
// 用户ID
System.arraycopy(userId.getBytes(), 0, fingerprint.szUserID, 0,
userId.getBytes().length);
// 将字符串转为指纹数据
byte[] fingerPrintBuffer = Base64Util.getDecoder().decode(finger);
// 单个指纹长度
fingerprint.nPacketLen = fingerPrintBuffer.length;
// 指纹包个数
fingerprint.nPacketNum = 1;
// 指纹数据
// 先申请内存
fingerprint.szFingerPrintInfo = new Memory(fingerPrintBuffer.length);
fingerprint.szFingerPrintInfo.clear(fingerPrintBuffer.length);
fingerprint.szFingerPrintInfo.write(0, fingerPrintBuffer, 0,
fingerPrintBuffer.length);
// //////////////////////////////////////////////////////////////////////////////////////////
// //////////////////////////////////////////////////////////////////////////////////////////
// 初始化
FAIL_CODE failCode = new FAIL_CODE();
// 指纹操作类型
// 修改指纹信息
int emtype = NET_EM_ACCESS_CTL_FINGERPRINT_SERVICE.NET_EM_ACCESS_CTL_FINGERPRINT_SERVICE_UPDATE;
/**
* 入参
*/
NET_IN_ACCESS_FINGERPRINT_SERVICE_UPDATE stIn = new NET_IN_ACCESS_FINGERPRINT_SERVICE_UPDATE();
stIn.nFpNum = 1;
stIn.pFingerPrintInfo = fingerprint.getPointer();
/**
* 出参
*/
NET_OUT_ACCESS_FINGERPRINT_SERVICE_UPDATE stOut = new NET_OUT_ACCESS_FINGERPRINT_SERVICE_UPDATE();
stOut.nMaxRetNum = 1;
stOut.pFailCode = failCode.getPointer();
stIn.write();
stOut.write();
fingerprint.write();
failCode.write();
if (netsdkApi.CLIENT_OperateAccessFingerprintService(loginHandle,
emtype, stIn.getPointer(), stOut.getPointer(), TIME_OUT)) {
// 打印具体信息
System.out.println("修改指纹结果 : " + failCode.nFailCode);
} else {
System.err.println("修改指纹失败, " + getErrorCode());
}
fingerprint.read();
failCode.read();
stIn.read();
stOut.read();
}
/**
* 根据用户ID获取单个指纹(一个用户ID对应一个指纹)
*/
public void getFingerprint() {
String userId = "1011";
// 指纹操作类型
// 获取指纹信息
int emtype = NET_EM_ACCESS_CTL_FINGERPRINT_SERVICE.NET_EM_ACCESS_CTL_FINGERPRINT_SERVICE_GET;
/**
* 入参
*/
NET_IN_ACCESS_FINGERPRINT_SERVICE_GET stIn = new NET_IN_ACCESS_FINGERPRINT_SERVICE_GET();
// 用户ID
System.arraycopy(userId.getBytes(), 0, stIn.szUserID, 0,
userId.getBytes().length);
/**
* 出参
*/
NET_OUT_ACCESS_FINGERPRINT_SERVICE_GET stOut = new NET_OUT_ACCESS_FINGERPRINT_SERVICE_GET();
// 接受指纹数据的缓存的最大长度
stOut.nMaxFingerDataLength = 1024;
stOut.pbyFingerData = new Memory(1024);
stOut.pbyFingerData.clear(1024);
stIn.write();
stOut.write();
if (netsdkApi.CLIENT_OperateAccessFingerprintService(loginHandle,
emtype, stIn.getPointer(), stOut.getPointer(), TIME_OUT)) {
// 需要在此处,才能获取到具体信息
stIn.read();
stOut.read();
byte[] buffer = stOut.pbyFingerData.getByteArray(0,
stOut.nRetFingerDataLength);
// 将获取到的指纹转成没有乱码的字符串
String figerStr = Base64Util.getEncoder().encodeToString(buffer);
System.out.println("获取到的指纹数据:" + figerStr);
} else {
System.err.println("获取指纹失败, " + getErrorCode());
}
}
/**
* 根据用户ID删除指纹
*/
public void deleteFingerprint() {
String userID = "1011";
// 初始化
FAIL_CODE failCode = new FAIL_CODE();
// 指纹操作类型
// 删除指纹信息
int emtype = NET_EM_ACCESS_CTL_FINGERPRINT_SERVICE.NET_EM_ACCESS_CTL_FINGERPRINT_SERVICE_REMOVE;
/**
* 入参
*/
NET_IN_ACCESS_FINGERPRINT_SERVICE_REMOVE stIn = new NET_IN_ACCESS_FINGERPRINT_SERVICE_REMOVE();
stIn.nUserNum = 1;
System.arraycopy(userID.getBytes(), 0, stIn.szUserIDs[0].szUserID, 0,
userID.getBytes().length);
/**
* 出参
*/
NET_OUT_ACCESS_FINGERPRINT_SERVICE_REMOVE stOut = new NET_OUT_ACCESS_FINGERPRINT_SERVICE_REMOVE();
stOut.nMaxRetNum = 1;
stOut.pFailCode = failCode.getPointer();
stIn.write();
stOut.write();
if (netsdkApi.CLIENT_OperateAccessFingerprintService(loginHandle,
emtype, stIn.getPointer(), stOut.getPointer(), TIME_OUT)) {
// 打印具体信息
System.out.println("删除指纹结果 : " + failCode.nFailCode);
} else {
System.err.println("删除指纹失败, " + getErrorCode());
}
stIn.read();
stOut.read();
}
/**
* 清空所有指纹
*/
public void clearFingerprint() {
// 指纹操作类型
// 清空指纹信息
int emtype = NET_EM_ACCESS_CTL_FINGERPRINT_SERVICE.NET_EM_ACCESS_CTL_FINGERPRINT_SERVICE_CLEAR;
/**
* 入参
*/
NET_IN_ACCESS_FINGERPRINT_SERVICE_CLEAR stIn = new NET_IN_ACCESS_FINGERPRINT_SERVICE_CLEAR();
/**
* 出参
*/
NET_OUT_ACCESS_FINGERPRINT_SERVICE_CLEAR stOut = new NET_OUT_ACCESS_FINGERPRINT_SERVICE_CLEAR();
stIn.write();
stOut.write();
if (netsdkApi.CLIENT_OperateAccessFingerprintService(loginHandle,
emtype, stIn.getPointer(), stOut.getPointer(), TIME_OUT)) {
System.out.println("清空指纹成功 !");
} else {
System.err.println("清空指纹失败, " + getErrorCode());
}
stIn.read();
stOut.read();
}
/**
* 设置对讲状态
*/
public void setThirdCallStatus()
{
// 入参
NET_IN_VTP_THIRDCALL_STATUS stIn = new NET_IN_VTP_THIRDCALL_STATUS();
stIn.emCallStatus = 2;
// 出参
NET_OUT_VTP_THIRDCALL_STATUS stOut = new NET_OUT_VTP_THIRDCALL_STATUS();
stIn.write();
stOut.write();
boolean bRet = netsdkApi.CLIENT_ControlDeviceEx(loginHandle, CtrlType.CTRLTYPE_CTRL_SET_THIRD_CALLSTATUS, stIn.getPointer(), stOut.getPointer(), 5000);
if (!bRet) {
System.err.println("Failed to setThirdCallStatus, last error " + String.format("[0x%x]", netsdkApi.CLIENT_GetLastError()));
}
else {
System.out.println("Seccessed to setThirdCallStatus.");
}
stIn.read();
stOut.read();
}
//向视频输出口投放视频和图片文件
public void setDelivery()
{
NET_CTRL_DELIVERY_FILE stuInfo = new NET_CTRL_DELIVERY_FILE();
stuInfo.nPort = 0;
stuInfo.emPlayMode = 2;
stuInfo.stuStartPlayTime.dwYear = 2019;
stuInfo.stuStartPlayTime.dwMonth = 06;
stuInfo.stuStartPlayTime.dwDay = 19;
stuInfo.stuStartPlayTime.dwHour = 20;
stuInfo.stuStartPlayTime.dwMinute = 31;
stuInfo.stuStartPlayTime.dwSecond = 00;
stuInfo.stuStopPlayTime.dwYear = 2019;
stuInfo.stuStopPlayTime.dwMonth = 06;
stuInfo.stuStopPlayTime.dwDay = 20;
stuInfo.stuStopPlayTime.dwHour = 20;
stuInfo.stuStopPlayTime.dwMinute = 31;
stuInfo.stuStopPlayTime.dwSecond = 15;
stuInfo.nFileCount = 1;
stuInfo.stuFileInfo[0].emFileType = 2; //图片
stuInfo.stuFileInfo[0].nImageSustain = 5;
String FileURL = "321.jpg";
System.arraycopy(FileURL.getBytes(), 0, stuInfo.stuFileInfo[0].szFileURL, 0,
FileURL.getBytes().length);
/*stuInfo.stuFileInfo[1].emFileType = 2;
stuInfo.stuFileInfo[1].nImageSustain = 3;
String FileURL2 = "/mnt/appdata1/AdPicture/test2028.pcm";
System.arraycopy(FileURL2.getBytes(), 0, stuInfo.stuFileInfo[1].szFileURL, 0,
FileURL2.getBytes().length);
stuInfo.stuFileInfo[2].emFileType = 2;
stuInfo.stuFileInfo[2].nImageSustain = 5;
String FileURL3 = "/mnt/appdata1/AdPicture/test2026.png";
System.arraycopy(FileURL3.getBytes(), 0, stuInfo.stuFileInfo[2].szFileURL, 0,
FileURL3.getBytes().length);*/
stuInfo.write();
int emType = CtrlType.CTRLTYPE_CTRL_DELIVERY_FILE;
boolean bRet = netsdkApi.CLIENT_ControlDevice(loginHandle, emType,
stuInfo.getPointer(), 3000);
stuInfo.read();
if (bRet) {
System.out.println("SetParkInfo Succeed!");
} else {
System.err.printf("SetParkInfo Failed! %x\n",
netsdkApi.CLIENT_GetLastError());
}
}
// 门禁事件配置
public void AccessConfig() {
// 获取
String szCommand = NetSDKLib.CFG_CMD_ACCESS_EVENT;
int nChn = 0; // 通道
CFG_ACCESS_EVENT_INFO access = new CFG_ACCESS_EVENT_INFO(); // m_stDeviceInfo.byChanNum为设备通道数
if (ToolKits.GetDevConfig(loginHandle, nChn, szCommand, access)) {
System.out.println("门禁通道名称:"
+ new String(access.szChannelName).trim());
System.out.println("首卡使能:" + access.stuFirstEnterInfo.bEnable); // 0-false;
// 1-true
System.out.println("首卡权限验证通过后的门禁状态:"
+ access.stuFirstEnterInfo.emStatus); // 状态参考枚举
// CFG_ACCESS_FIRSTENTER_STATUS
System.out.println("需要首卡验证的时间段, 值为通道号:"
+ access.stuFirstEnterInfo.nTimeIndex);
System.out.println(" 当前门采集状态:" + access.emReadCardState);
}
CFG_AUTO_REMOTE_CHECK_INFO info = new CFG_AUTO_REMOTE_CHECK_INFO();
access.abRemoteCheck = 1;
access.bRemoteControlEnable = 1;
access.bRemoteCheck = 1;
info.bEnable = 1;
info.nTimeSechdule = 0;
access.stuAutoRemoteCheck = info;
// 设置
// access.emReadCardState = EM_CFG_CARD_STATE.EM_CFG_CARD_STATE_SWIPE; // 门禁刷卡
// access.emReadCardState = EM_CFG_CARD_STATE.EM_CFG_CARD_STATE_COLLECTION; // 门禁采集卡
// access.emReadCardState = EM_CFG_CARD_STATE.EM_CFG_CARD_STATE_UNKNOWN; // 退出读卡状态
boolean bRet = ToolKits.SetDevConfig(loginHandle, nChn, szCommand,
access);
if (bRet) {
System.out.println("Set Succeed!");
}
}
/**
* 获取刷卡记录列表(可根据时间段)
* 下载图片的功能,这个还需要调试,设备的程序存在点问题,至于客户所用设备是否支持,暂时不清楚
*/
// 查询所有刷卡记录
public void QueryAllRecord() {
FIND_RECORD_ACCESSCTLCARDREC_CONDITION_EX queryCondition = new FIND_RECORD_ACCESSCTLCARDREC_CONDITION_EX();
queryAccessRecords(queryCondition);
// 获取到的图片,只是一个图片地址,想要获取到图片,需要调用 downloadRemoteFile() 下载图片
//downloadRemoteFile("/mnt/appdata1/snapshot/SnapShot/2018-06-12/175720[C][0].jpg");
}
/**
* 下载图片
* @param szFileName 需要下载的文件名
*/
public boolean downloadRemoteFile(String szFileName, String saveName) {
// 入参
NET_IN_DOWNLOAD_REMOTE_FILE stIn = new NET_IN_DOWNLOAD_REMOTE_FILE();
stIn.pszFileName = new NativeString(szFileName).getPointer();
//stIn.pszFileDst = new NativeString("./face.jpg").getPointer(); // 存放路径
stIn.pszFileDst = new NativeString("./" + saveName + ".jpg").getPointer();
// 出参
NET_OUT_DOWNLOAD_REMOTE_FILE stOut = new NET_OUT_DOWNLOAD_REMOTE_FILE();
if(netsdkApi.CLIENT_DownloadRemoteFile(loginHandle, stIn, stOut, 5000)) {
System.out.println("下载图片成功!");
} else {
System.err.println("下载图片失败!" + ToolKits.getErrorCode());
return false;
}
return true;
}
/**
* 获取查询总记录条数
* @param findHandle 查询句柄
* @return
*/
public int getTotalRecordCount1(LLong findHandle) {
NET_IN_QUEYT_RECORD_COUNT_PARAM paramIn = new NET_IN_QUEYT_RECORD_COUNT_PARAM();
paramIn.lFindeHandle = (findHandle);
NET_OUT_QUEYT_RECORD_COUNT_PARAM paramOut = new NET_OUT_QUEYT_RECORD_COUNT_PARAM();
boolean bRet = netsdkApi.CLIENT_QueryRecordCount(paramIn, paramOut, 3000);
if (!bRet) {
System.err.println("Can't getTotalRecordCount" + Integer.toHexString(netsdkApi.CLIENT_GetLastError()));
return -1;
}
else
{
System.err.println("getTotalRecordCount:" + paramOut.nRecordCount);
}
return paramOut.nRecordCount;
}
/**
* 查询门禁刷卡记录
* @param queryCondition 查询条件
*/
public void queryAccessRecords(FIND_RECORD_ACCESSCTLCARDREC_CONDITION_EX queryCondition) {
/**
* 查询条件
*/
if(queryCondition == null) {
queryCondition = new FIND_RECORD_ACCESSCTLCARDREC_CONDITION_EX();
System.err.println("queryCondition == null");
}
/**
* CLIENT_FindRecord 入参
*/
NET_IN_FIND_RECORD_PARAM findRecordIn = new NET_IN_FIND_RECORD_PARAM();
findRecordIn.emType = EM_NET_RECORD_TYPE.NET_RECORD_ACCESSCTLCARDREC_EX;
findRecordIn.pQueryCondition = queryCondition.getPointer();
/**
* CLIENT_FindRecord 出参
*/
NET_OUT_FIND_RECORD_PARAM findRecordOut = new NET_OUT_FIND_RECORD_PARAM();
queryCondition.write();
findRecordIn.write();
findRecordOut.write();
boolean success = netsdkApi.CLIENT_FindRecord(loginHandle, findRecordIn, findRecordOut, 5000);
findRecordOut.read();
findRecordIn.read();
queryCondition.read();
if(!success) {
System.err.println("Can Not Find This Record: " + String.format("0x%x", netsdkApi.CLIENT_GetLastError()));
return;
}
getTotalRecordCount1(findRecordOut.lFindeHandle);
// System.out.println("FindRecord Succeed" + "\n" + "FindHandle :" + findRecordOut.lFindeHandle);
final int nRecordCount = 10; // 每次查询的最大个数
/**
* 门禁刷卡记录记录集信息
*/
NET_RECORDSET_ACCESS_CTL_CARDREC[] records = new NET_RECORDSET_ACCESS_CTL_CARDREC[nRecordCount];
for(int i = 0; i < nRecordCount; i++) {
records[i] = new NET_RECORDSET_ACCESS_CTL_CARDREC();
}
/**
* CLIENT_FindNextRecord 入参
*/
NET_IN_FIND_NEXT_RECORD_PARAM findNextRecordIn = new NET_IN_FIND_NEXT_RECORD_PARAM();
findNextRecordIn.lFindeHandle = findRecordOut.lFindeHandle;
findNextRecordIn.nFileCount = nRecordCount; //想查询的记录条数
/**
* CLIENT_FindNextRecord 出参
*/
NET_OUT_FIND_NEXT_RECORD_PARAM findNextRecordOut = new NET_OUT_FIND_NEXT_RECORD_PARAM();
findNextRecordOut.nMaxRecordNum = nRecordCount;
findNextRecordOut.pRecordList = new Memory(records[0].dwSize * nRecordCount); // 申请内存
findNextRecordOut.pRecordList.clear(records[0].dwSize * nRecordCount);
// 将 native 数据初始化
ToolKits.SetStructArrToPointerData(records, findNextRecordOut.pRecordList);
int count = 0; //循环的次数
int recordIndex = 0;
while(true) { //循环查询
if(!netsdkApi.CLIENT_FindNextRecord(findNextRecordIn, findNextRecordOut, 5000) ) {
System.err.println("FindNextRecord Failed" + ToolKits.getErrorCode());
break;
}
/// 将 native 数据转为 java 数据
ToolKits.GetPointerDataToStructArr(findNextRecordOut.pRecordList, records);
for(int i = 0; i < findNextRecordOut.nRetRecordNum; i++) {
recordIndex = i + count * nRecordCount;
System.out.println("----------------[" + recordIndex + "]----------------" );
System.out.println("刷卡时间:" + records[i].stuTime.toStringTime()
+ "\n" + "记录集编号:" + records[i].nRecNo
+ "\n" + "卡号:" + new String(records[i].szCardNo).trim()
+ "\n" + "卡类型:" + records[i].emCardType
+ "\n" + "门号:" + records[i].nDoor
+ "\n" + "开门方式:" + records[i].emMethod
+ "\n" + "开门失败错误码:" + records[i].nErrorCode
+ "\n" + "开锁抓拍上传的FTP地址:" + new String(records[i].szSnapFtpUrl).trim()
+ "\n" + "开门结果:" + (records[i].bStatus == 1 ? "成功" : "失败")
+ "\n" + "图片路径:" + new String(records[i].szSnapFtpUrl).trim()
);
downloadRemoteFile(new String(records[i].szSnapFtpUrl).trim(), "szSnapFtpUrl");
//downloadRemoteFile(new String(records[i].szCitizenPictureURL).trim(), "szCitizenPictureURL");
}
if (findNextRecordOut.nRetRecordNum < nRecordCount) {
break;
} else {
count ++;
}
}
success = netsdkApi.CLIENT_FindRecordClose(findRecordOut.lFindeHandle);
if (!success) {
System.err.println("Failed to Close: " + ToolKits.getErrorCode());
}
}
// 按时间查询刷卡记录, 由于1202B-D性能问题, 不能按卡号或者时间条件过滤查询数据
public void QueryRecordByTime() {
FIND_RECORD_ACCESSCTLCARDREC_CONDITION_EX queryCondition = new FIND_RECORD_ACCESSCTLCARDREC_CONDITION_EX();
queryCondition.bTimeEnable = 1;
queryCondition.stStartTime.setTime(2021, 3, 15, 0, 0, 0);
queryCondition.stEndTime.setTime(2021, 3, 19, 23, 39, 0);
queryAccessRecords(queryCondition);
}
/**
* 根据刷卡记录列表id获取刷卡记录信息(包括比对照片),按卡号查询刷卡记录
*/
public void QueryRecordByNo() {
// 支持卡号查询
FIND_RECORD_ACCESSCTLCARDREC_CONDITION_EX queryCondition = new FIND_RECORD_ACCESSCTLCARDREC_CONDITION_EX();
queryCondition.bCardNoEnable = 1;
String cardNo = "659C09DE"; // 卡号
System.arraycopy(cardNo.getBytes(), 0, queryCondition.szCardNo, 0, cardNo.length());
queryAccessRecords(queryCondition);
// 获取到的图片,只是一个图片地址,想要获取到图片,需要调用 downloadRemoteFile() 下载图片
//downloadRemoteFile("/mnt/appdata1/snapshot/SnapShot/2018-06-12/175720[C][0].jpg");
}
/**
* 门禁刷卡时间段设置
*/
public void setAccessTimeSchedule() {
CFG_ACCESS_TIMESCHEDULE_INFO msg = new CFG_ACCESS_TIMESCHEDULE_INFO();
String strCmd = NetSDKLib.CFG_CMD_ACCESSTIMESCHEDULE;
int nChannel = 111; //
// 获取
if(ToolKits.GetDevConfig(loginHandle, nChannel, strCmd, msg)) {
System.out.println("Enable:" + msg.bEnable);
try {
System.out.println("自定义名称:" + new String(msg.szName, "GBK").trim());
} catch (UnsupportedEncodingException e) {
e.printStackTrace();
}
String strName = "访客时间段";
try {
System.arraycopy(strName.getBytes("GBK"), 0, msg.szName, 0, strName.getBytes("GBK").length);
}catch (UnsupportedEncodingException e) {
System.err.println("...UnsupportedEncodingException...");
}
msg.bEnable = 1;
//只设了周一到周五
for(int i = 0; i < 7; i++) {
if(i == 0 || i == 6)
{
msg.stuTimeWeekDay[i].stuTimeSection[0].dwRecordMask = 0;
msg.stuTimeWeekDay[i].stuTimeSection[0].setStartTime(8, 0, 0);
msg.stuTimeWeekDay[i].stuTimeSection[0].setEndTime(9, 0, 0);
}
else
{
for(int j = 0; j < 1; j++) {
msg.stuTimeWeekDay[i].stuTimeSection[j].setStartTime(0, 0, 0);
msg.stuTimeWeekDay[i].stuTimeSection[j].setEndTime(23, 59, 59);
System.out.println("dwRecordMask:" + msg.stuTimeWeekDay[i].stuTimeSection[j].dwRecordMask);
System.out.println(msg.stuTimeWeekDay[i].stuTimeSection[j].startTime() + "-" +
msg.stuTimeWeekDay[i].stuTimeSection[j].endTime() + "\n");
}
}
}
// 设置
if(ToolKits.SetDevConfig(loginHandle, nChannel, strCmd, msg)) {
System.out.println("Set AccessTimeSchedule Succeed!");
} else {
//System.err.println("Set AccessTimeSchedule Failed!" + ToolKits.getErrorCode());
}
} else {
//System.err.println("Get AccessTimeSchedule Failed!" + ToolKits.getErrorCode());
}
}
/**
* 上传音频文件
*/
public void audioUpload(){
//入参
NET_IN_UPLOAD_REMOTE_FILE uploadParam=new NET_IN_UPLOAD_REMOTE_FILE();
//要上传的文件
File file=new File("d:/321.jpg");
String filePath=file.getAbsolutePath();
String fileName=file.getName();
//源文件的路径
uploadParam.pszFileSrc=new NativeString(filePath).getPointer();
//目标文件名称
uploadParam.pszFileDst=new NativeString(fileName).getPointer();
uploadParam.nPacketLen=1024*2;
NET_OUT_UPLOAD_REMOTE_FILE uploadOutParam=new NET_OUT_UPLOAD_REMOTE_FILE();
uploadParam.write();
boolean isUpload=netsdkApi.CLIENT_UploadRemoteFile(loginHandle,uploadParam,uploadOutParam,3000);
uploadParam.read();
if(isUpload){
System.out.println("upload audio success!");
}else{
/**
* 如果上传失败,请检查上传的文件大小,上传路径,上传格式
*/
System.out.println("failed to upload audio.the error is "+ToolKits.getErrorCode());
}
}
/**
* 设置二维码的解码信息
*/
public void SetQrcode() {
int emtype = NET_EM_ACCESS_CTL_MANAGER.NET_EM_ACCESS_CTL_SET_QRCODEDECODE_INFO;
/*
* 入参
*/
NET_IN_SET_QRCODE_DECODE_INFO stIn = new NET_IN_SET_QRCODE_DECODE_INFO();
// 加密方式
stIn.emCipher = NET_ENUM_QRCODE_CIPHER.NET_ENUM_QRCODE_CIPHER_AES256;
// 秘钥, 必须32位,用户自己定义,用于二维码加密
// 但是加密密钥变化的周期不能小于1天;因为访客拿到二维码的时候,最长可能会使用二维码一天的,所以如果变化,最少一天以上再变
String key = "0123456789ABCDEF0123456789ABCDEF";
System.arraycopy(key.getBytes(), 0, stIn.szKey, 0, key.getBytes().length);
/*
* 出参
*/
NET_OUT_SET_QRCODE_DECODE_INFO stOut = new NET_OUT_SET_QRCODE_DECODE_INFO();
stIn.write();
stOut.write();
boolean bRet = netsdkApi.CLIENT_OperateAccessControlManager(loginHandle, emtype, stIn.getPointer(), stOut.getPointer(), 5000);
stIn.read();
stOut.read();
if(bRet) {
System.out.println("设置二维码的解码信息成功.");
} else {
System.err.println("设置二维码的解码信息失败, " + getErrorCode());
}
}
/**
* 二维码加密
*/
public void EncryptString() {
/*
* 入参
*/
NET_IN_ENCRYPT_STRING stIn = new NET_IN_ENCRYPT_STRING();
// 卡号
String card = "37B8F0E4";
System.arraycopy(card.getBytes(), 0, stIn.szCard, 0, card.getBytes().length);
// 秘钥, 必须32位,要跟SetQrcode()里的密钥一样
String key = "0123456789ABCDEF0123456789ABCDEF";
System.arraycopy(key.getBytes(), 0, stIn.szKey, 0, key.getBytes().length);
/*
* 出参
*/
NET_OUT_ENCRYPT_STRING stOut = new NET_OUT_ENCRYPT_STRING();
if(netsdkApi.CLIENT_EncryptString(stIn, stOut, 4000)) {
System.out.println("加密后的字符串:" + new String(stOut.szEncryptString).trim());
}
else
{
System.out.println("加密失败" );
}
}
/**
* 开门
*/
public static void openDoor() {
NET_CTRL_ACCESS_OPEN open = new NET_CTRL_ACCESS_OPEN();
open.nChannelID = 0;
open.write();
boolean openSuccess = netsdkApi.CLIENT_ControlDeviceEx(loginHandle, CtrlType.CTRLTYPE_CTRL_ACCESS_OPEN, open.getPointer(), null, 5000);
open.read();
if (!openSuccess) {
System.err.println("open error: 0x" + Long.toHexString(netsdkApi.CLIENT_GetLastError()));
}
else
{
System.err.println("开门成功");
}
}
/**
* 关门
*/
public void closeDoor() {
final NET_CTRL_ACCESS_CLOSE close = new NET_CTRL_ACCESS_CLOSE();
close.nChannelID = 0; // 对应的门编号 - 如何开全部的门
close.write();
boolean result = netsdkApi.CLIENT_ControlDeviceEx(loginHandle,
CtrlType.CTRLTYPE_CTRL_ACCESS_CLOSE,
close.getPointer(),
null,
5000);
close.read();
if (!result) {
System.err.println("close error: 0x" + Long.toHexString(netsdkApi.CLIENT_GetLastError()));
}
else
{
System.err.println("关门成功");
}
}
/**
* 查询门(开、关)状态
*/
public void queryDoorStatus() {
int cmd = NetSDKLib.NET_DEVSTATE_DOOR_STATE;
NET_DOOR_STATUS_INFO doorStatus = new NET_DOOR_STATUS_INFO();
IntByReference retLenByReference = new IntByReference(0);
doorStatus.write();
boolean bRet = netsdkApi.CLIENT_QueryDevState(loginHandle,
cmd,
doorStatus.getPointer(),
doorStatus.size(),
retLenByReference,
3000);
doorStatus.read();
if (!bRet) {
System.err.println("Failed to queryDoorStatus. Error Code 0x"
+ Integer.toHexString(netsdkApi.CLIENT_GetLastError()));
return;
}
String stateType[] = {"未知", "门打开", "门关闭", "门异常打开"};
System.out.println("doorStatus -> Channel: " + doorStatus.nChannel
+ " type: " + stateType[doorStatus.emStateType]);
}
public void RunTest() {
System.out.println("Run Test");
CaseMenu menu = new CaseMenu();
menu.addItem(new CaseMenu.Item(this, "订阅门禁事件", "realLoadPicture"));
menu.addItem(new CaseMenu.Item(this, "取消订阅门禁事件", "stopRealLoadPicture"));
menu.addItem(new CaseMenu.Item(this, "订阅报警事件", "startListen"));
menu.addItem(new CaseMenu.Item(this, "取消报警事件", "stopListen"));
menu.addItem(new CaseMenu.Item(this, "门禁事件配置", "AccessConfig"));
menu.addItem(new CaseMenu.Item(this, "时间段配置", "setAccessTimeSchedule"));
menu.addItem(new CaseMenu.Item(this , "开门——openDoor", "openDoor"));
menu.addItem(new CaseMenu.Item(this , "关门——closeDoor", "closeDoor"));
menu.addItem(new CaseMenu.Item(this , "查询门(开、关)状态——queryDoorStatus", "queryDoorStatus"));
menu.addItem(new CaseMenu.Item(this, "查询所有用户信息", "queryAllUser"));
menu.addItem(new CaseMenu.Item(this, "添加用户", "addUser"));
menu.addItem(new CaseMenu.Item(this, "根据用户ID查询用户信息", "getUser"));
menu.addItem(new CaseMenu.Item(this, "删除指定用户ID的用户", "deleteUser"));
menu.addItem(new CaseMenu.Item(this, "清空所有用户", "clearUser"));
menu.addItem(new CaseMenu.Item(this, "根据用户ID查询所有卡", "queryAllCard"));
menu.addItem(new CaseMenu.Item(this, "根据用户ID添加多张卡", "addCard"));
menu.addItem(new CaseMenu.Item(this, "根据用户ID修改多张卡", "modifyCard"));
menu.addItem(new CaseMenu.Item(this, "根据卡号获取卡信息", "getCard"));
menu.addItem(new CaseMenu.Item(this, "根据卡号删除卡", "deleteCard"));
menu.addItem(new CaseMenu.Item(this, "清空卡信息", "clearCard"));
menu.addItem(new CaseMenu.Item(this, "根据用户ID添加人脸", "addFace"));
menu.addItem(new CaseMenu.Item(this, "根据用户ID修改人脸", "modifyFace"));
menu.addItem(new CaseMenu.Item(this, "根据用户ID获取人脸", "getFace"));
menu.addItem(new CaseMenu.Item(this, "根据用户ID删除人脸", "deleteFace"));
menu.addItem(new CaseMenu.Item(this, "清空所有人脸", "clearFace"));
menu.addItem(new CaseMenu.Item(this, "根据用户ID添加指纹", "addFingerprint"));
menu.addItem(new CaseMenu.Item(this, "根据用户ID修改指纹", "modifyFingerprint"));
menu.addItem(new CaseMenu.Item(this, "根据用户ID获取单个指纹", "getFingerprint"));
menu.addItem(new CaseMenu.Item(this, "根据用户ID删除指纹", "deleteFingerprint"));
menu.addItem(new CaseMenu.Item(this, "清空所有指纹", "clearFingerprint"));
menu.addItem(new CaseMenu.Item(this, "设置对讲状态", "setThirdCallStatus"));
menu.addItem(new CaseMenu.Item(this , "查询所有刷卡记录" , "QueryAllRecord"));
menu.addItem(new CaseMenu.Item(this , "按时间查询刷卡记录" , "QueryRecordByTime"));
menu.addItem(new CaseMenu.Item(this , "按卡号查询刷卡记录" , "QueryRecordByNo"));
menu.addItem(new CaseMenu.Item(this, "設置投放的文件类型", "setDelivery"));
menu.addItem(new CaseMenu.Item(this, "上传文件", "audioUpload"));
menu.addItem(new CaseMenu.Item(this , "设置二维码的解码信息", "SetQrcode"));
menu.addItem(new CaseMenu.Item(this , "二维码加密", "EncryptString"));
menu.run();
}
public static void main(String[] args) {
AccessNew demo = new AccessNew();
demo.InitTest();
demo.RunTest();
demo.EndTest();
}
}
时间段规则vue展示
时间段规则存的是json格式的
<el-table-column label="时间描述" align="left" width="700">
<template slot-scope="scope">
<div >
<div>周一</div>
<div style="margin-left:20px;">
<span v-for="(item,index) in JSON.parse(scope.row.fgrpWeekday1).stuTimeSection" :key="index">
<span >时间{{index +1}}</span>[{{item.nBeginHour}}:{{item.nBeginMin}}:{{item.nBeginSec}} ~ {{item.nEndHour}}:{{item.nEndMin}}:{{item.nEndSec}}]
<span v-if="index !=3">; </span>
</span>
</div>
</div>
<div>
<div>周二</div>
<div style="margin-left:20px;">
<span v-for="(item,index) in JSON.parse(scope.row.fgrpWeekday2).stuTimeSection" :key="index">
<span >时间{{index +1}}</span>[{{item.nBeginHour}}:{{item.nBeginMin}}:{{item.nBeginSec}} ~ {{item.nEndHour}}:{{item.nEndMin}}:{{item.nEndSec}}]
<span v-if="index !=3">; </span>
</span>
</div>
</div>
<div>
<div>周三</div>
<div style="margin-left:20px;">
<span v-for="(item,index) in JSON.parse(scope.row.fgrpWeekday3).stuTimeSection" :key="index">
<span >时间{{index +1}}</span>[{{item.nBeginHour}}:{{item.nBeginMin}}:{{item.nBeginSec}} ~ {{item.nEndHour}}:{{item.nEndMin}}:{{item.nEndSec}}]
<span v-if="index !=3">; </span>
</span>
</div>
</div>
<div>
<div>周四</div>
<div style="margin-left:20px;">
<span v-for="(item,index) in JSON.parse(scope.row.fgrpWeekday4).stuTimeSection" :key="index">
<span >时间{{index +1}}</span>[{{item.nBeginHour}}:{{item.nBeginMin}}:{{item.nBeginSec}} ~ {{item.nEndHour}}:{{item.nEndMin}}:{{item.nEndSec}}]
<span v-if="index !=3">; </span>
</span>
</div>
</div>
<div>
<div>周五</div>
<div style="margin-left:20px;">
<span v-for="(item,index) in JSON.parse(scope.row.fgrpWeekday5).stuTimeSection" :key="index">
<span >时间{{index +1}}</span>[{{item.nBeginHour}}:{{item.nBeginMin}}:{{item.nBeginSec}} ~ {{item.nEndHour}}:{{item.nEndMin}}:{{item.nEndSec}}]
<span v-if="index !=3">; </span>
</span>
</div>
</div>
<div>
<div>周六</div>
<div style="margin-left:20px;">
<span v-for="(item,index) in JSON.parse(scope.row.fgrpWeekday6).stuTimeSection" :key="index">
<span >时间{{index +1}}</span>[{{item.nBeginHour}}:{{item.nBeginMin}}:{{item.nBeginSec}} ~ {{item.nEndHour}}:{{item.nEndMin}}:{{item.nEndSec}}]
<span v-if="index !=3">; </span>
</span>
</div>
</div>
<div>
<div>周日</div>
<div style="margin-left:20px;">
<span v-for="(item,index) in JSON.parse(scope.row.fgrpWeekday7).stuTimeSection" :key="index">
<span>时间{{index +1}}</span>[{{item.nBeginHour}}:{{item.nBeginMin}}:{{item.nBeginSec}} ~ {{item.nEndHour}}:{{item.nEndMin}}:{{item.nEndSec}}]
<span v-if="index !=3">; </span>
</span>
</div>
</div>
</template>
</el-table-column>
好博客就要一起分享哦!分享海报
此处可发布评论
评论(0)展开评论
展开评论
